GV-VD2702

Name: GV-VD2702 - Gvision
Brand: Dome
SKU: fddedfd026ea
Price: 290.00 EUR
Availability: InStock

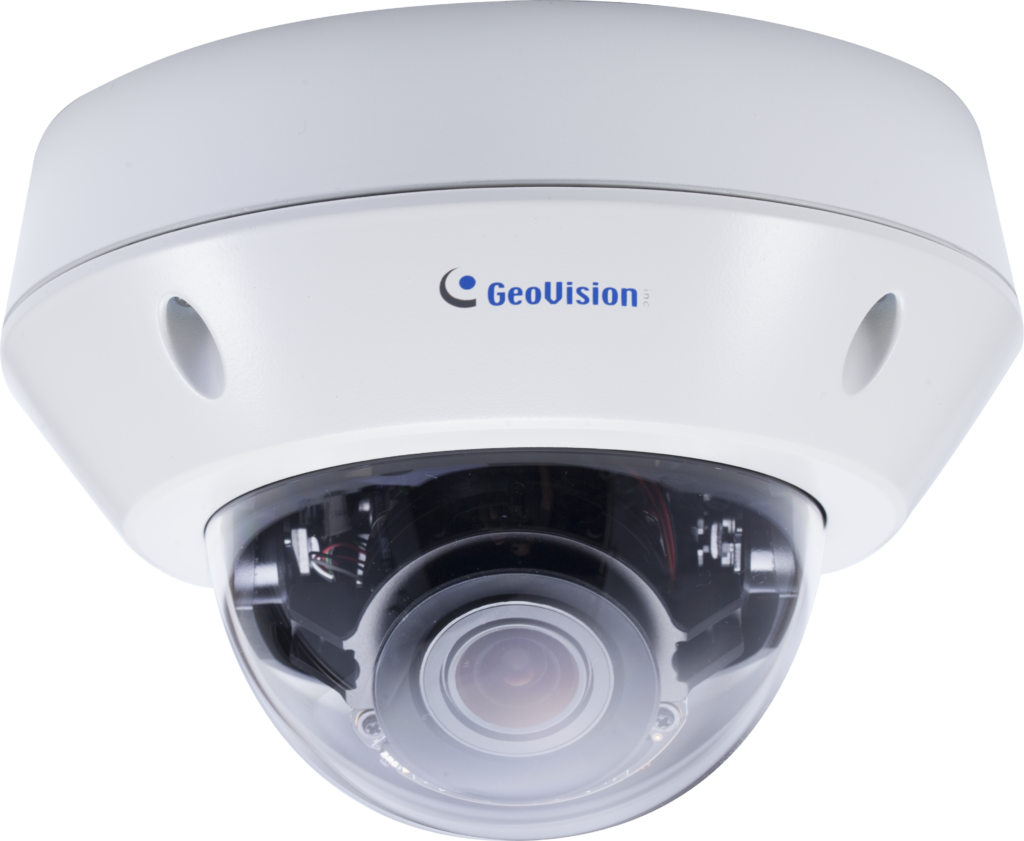

Starlight 2MP H.265 Super Low Lux WDR Pro IR Vandal Proof IP Dome

La camera Dome Vandal Proof IP, è una telecamera per esterni progettata con resistenza agli atti vandalici IK10 e protezione IP67. La videocamera può supportare il codec video H.265 per ottenere un migliore rapporto di compressione mantenendo immagini di alta qualità a larghezza di banda ridotta. Per le immagini notturne, la telecamera, dotata di IR consente distanze fino a 30 m (98,4 piedi). GV-VD2702 è in grado non solo di fornire una immagine live a colori nell’oscurità, ma anche con intensità di luce contrastanti grazie al suo sensore di immagine CMOS super lux e WDR Pro.

COD: fddedfd026ea Categorie: Dome, IP Camera

Specifiche

Model	GV-VD2702
Iris	P-Iris
Focal Length (mm)	2.8 ~12 mm
Horizontal FOV	110°~38°
Maximum Aperture	F/1.7
Image Format	1/2.7”

Note:
- Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.0.0.
- Specifications are subject to change without notice.

Key Features

1/2.8″ progressive scan super low lux CMOS
Min. illumination at 0.004 lux
Triple streams from H.265, H.264 and MJPEG
Up to 30 fps at 1920 × 1080
Vandal resistance (IK10 for metal casing)
Ingress protection (IP67)
P-iris lens for auto iris control
Intelligent IR
IR distance up to 30 m (98.4 ft)
Day and Night function (with removable IR-cut filter)
3-axis mechanism (pan / tilt / rotate)
DC 12V / PoE (IEEE 802.3af)
Two-way audio
Wide Dynamic Range Pro (WDR Pro)
3D noise reduction
Smart streaming
Defog
Motion detection
Tampering alarm
Text overlay
Privacy mask
IP address filtering
Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
Supports iPhone, iPad, Android & 3GPP
31 languages on Web interface
ONVIF (Profile S) conformant

Overview

Accessories

Model No	Name	Details
GV-Mount100	Straight Tube and Junction Box Kit		Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1″) Weight: 3.17 kg (6.99 lb)
GV-Mount101	Straight Tube Kit		Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1″) Weight: 1.8 kg (3.97 lb)
GV-Mount200	Wall Pendant Tube		Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8″) Weight: 900 g (1.98 lb)
GV-Mount203	Wall Pendant Tube and Junction Box Kit		Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9″) Weight: 2.95 kg (6.5 lb)
GV-Mount206	Wall Mount Bracket Kit		Dimensions: 126.5 x 211.3 x 176.85 mm / 5 x 8.3 x 6.96″ Weight: 0.93 kg (2.06 lb)
GV-Mount300-1	Convex Corner Adapter Kit		Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″) Weight: 4.27 kg (9.41 lb)
GV-Mount310-1	Concave Corner Adapter Kit		Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2″) Weight: 2.96 kg (6.53 lb)
GV-Mount400-1	Pole Mount Bracket Kit (Ø 4 ~ 6″)		Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″) Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 4 ~ 6″
GV-Mount410-1	Pole Mount Bracket Kit (Ø 6 ~ 7.5″)		Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″) Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 6 ~ 7.5″
GV-Mount702	Extension Tube		Four options are available. Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm (Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7″) Weight: 180 g or 390 g or 550 g or 800 g (0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount903-1	Dome Housing		Dimensions: Ø 185.5 x 165.3 mm (Ø 7.3″ x 6.5″) Weight: 900 g (1.98 lb)
GV-Mount916	In-Ceiling Mounting		Dimensions: Ø 205 x 63.8 mm (Ø 8 x 2.5″) Weight: 645 g
GV‐PA191 PoE Adapter			Dimensions (H x W x D): 43 x 69 x 40 mm (1.69 x 2.72 x 1.57″) Weight: 130 g (0.29 lb)
Metal PG21 Conduit Connector			The metal PG21 conduit connector allows you to run the wires through a 3/4″ conduit pipe.
GV-POE Switch		The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
GV-Relay V2			The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
Power Adapter		Contact our sales representatives for the countries and areas supported.
