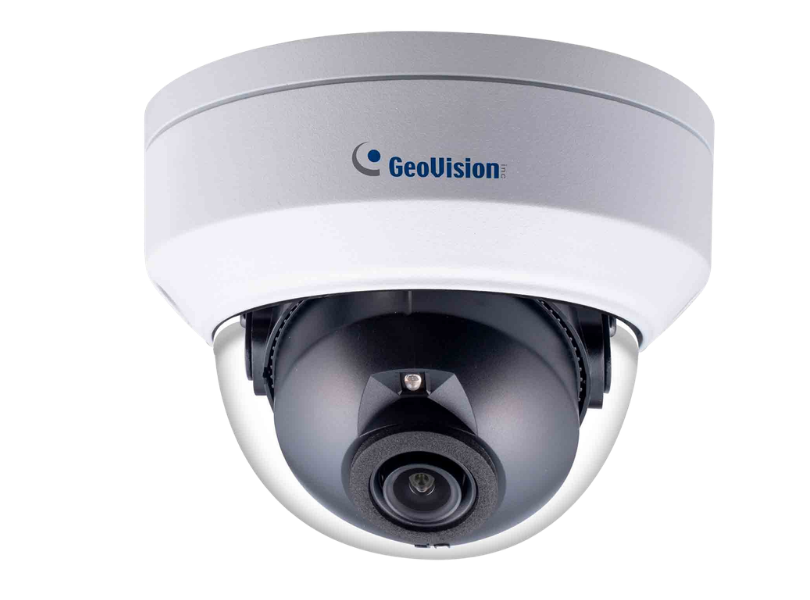

2MP H.265 Low Lux WDR Pro IR Mini Fixed Rugged IP Dome
Il Mini Fixed Rugged IP Dome GV-TDR2704 Series è una telecamera di rete fissa per esterni dotata di un filtro automatico di taglio IR e di un LED IR per la sorveglianza diurna e notturna. La telecamera supporta il codec video H.265 per ottenere un miglior rapporto di compressione, mantenendo al contempo immagini di alta qualità con una larghezza di banda di rete ridotta. Rispetta gli standard IP67 e IK10 e può essere alimentata tramite PoE.
Specifiche
| Model | GV-TDR2704-2F | GV-TDR2704-4F |
| Iris | Fixed | Fixed |
| Focal Length (mm) | 2.8mm | 4mm |
| Horizontal FOV | 113° | 91° |
| Maximum Aperture | F/2.0 | F/2.0 |
| Image Format | 1/2.7″ | 1/2.7″ |
Note:
| Model No | Name | Details | |
|---|---|---|---|
| GV-Mount107 | Pendant Bracket |  | Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″) Weight: 0.74 kg (1.63 lb) *must be used with GV-Mount212-2 |
| GV-Mount211P | Wall Mount and Junction Box |  | Dimensions: Φ233 x 125 x 125 mm / (Φ9.2 x 4.9 x 4.9″) Weight: 1 kg (2.2 lb) |
| GV-Mount213 | Wall / Ceiling Box Mount |  | Dimensions: Φ109 x 39 mm (Φ4.3″ x 1.5″) Weight: 0.2 kg (0.44 lb) |
| GV-Mount300-2 | Convex Corner Mount |  | Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″) Weight: 1.65 kg (3.64 lb) |
| GV-Mount310-2 | Concave Corner Mount |  | Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″) Weight: 1.65 kg (3.64 lb) |
| GV-Mount420 | Pole Mount Bracket |  | Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″) Weight: 0.45 kg (0.99 lb) Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″) *must be used with GV-Mount211-2 |
| GV-Mount704 | Extension Tube |  | Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″) Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb) *must be used with GV-Mount107 |
| GV-PA191 PoE Adapter | Power over Ethernet (PoE) Adapter |  | GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable. |
| GV-POE Switch | GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports. | ||
| Power Adapter | Contact our sales representatives for the countries and areas supported. | ||
