Ottica e portata
Campo visivo
112°
- Diaframma
- Fixed
- Lunghezza focale
- 3.93mm
- Campo visivo orizzontale
- 112°
- Apertura massima
- F/2.3
- Formato sensore
- 1/1.7″
Termini collegati alla documentazione tecnica:
campo visivo,
criterio di Johnson,
NETD.
Caratteristiche
- 4 x 1/1.7″ progressive scan CMOS
- Dual streams from H.264 or MJPEG
- Up to 15 fps at 4000 x 3000
- Two-way audio
- Four sensor inputs and one alarm output
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- DC 24V / AC 24V / High PoE++ (72 W)
- 4 x Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
- Day and Night function (with removable IR-cut filter)
- Wide Dynamic Range (WDR)
- Low lux enhancement
- 3D noise reduction
- Smart streaming
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
- Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
Registro di responsabilità
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, unica CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona.
Contenuto della confezione

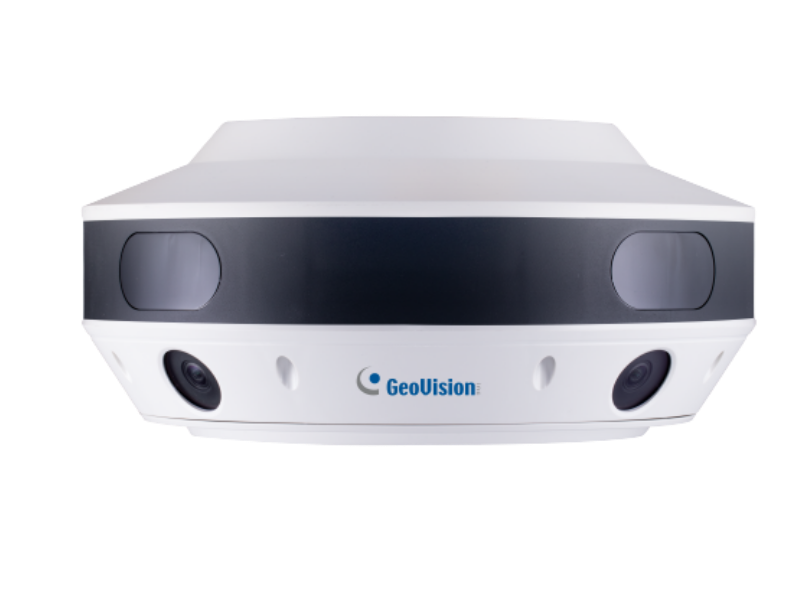

- GV-SV48000
- Hex Wrench
- RJ-45 Connector
- Silica Gel Bag
- GV-Mount103-1
- Download Guide
- Warranty Card
Accessori compatibili
GV-Mount102 · Straight Tube Box Mount · Dimensions: 256 x 256 x 316 mm (10.1 x 10.1 x 12.4″)
Weight: 6.6 kg (14.6 lb)
GV-Mount103 · Straight Tube Mount · Dimensions (L x W x D): 340 x 219 x 125 mm (13.4 x 8.6 x 4.9″)
Weight: 2.2 kg (4.9 lb)
GV‐Mount103‐1 · Straight Tube Mount · Dimensions (L x W x D): 240 x 219 x 125 mm (9.4 x 8.6 x 4.9″)
Weight: 1.76 kg (3.88 lb)
GV-Mount207 · Pendant Tube · Dimensions: 151.6 x 203.6 x 302.8 mm / (5.97 x 8.02 x 11.92″)
Weight: 1.43 kg (3.15 lb)
GV-Mount 208-1 · Swan Neck Mount · Dimension: 1043 x 565 x 256 mm (41.06 x 22.24 x 10.08″)
Weight: 10.6 kg (23.37 lb)
GV-Mount300-1 · Convex Corner Adapter Kit · Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″)
Weight: 4.27 kg (9.41 lb)
GV-Mount400-1 · Pole Mount Bracket Kit (Ø 4 ~ 6″) · Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb) · Steel Strap Diameter: Ø 4 ~…
GV-Mount410-1 · Pole Mount Bracket Kit (Ø 6 ~ 7.5″) · Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb) · Steel Strap Diameter: Ø 6 ~…
