GV-SNVR0811 è un registratore video IP Linux Embedded con codifica H.264 / H.265 che registra i file video direttamente sul disco rigido interno, supportando fino a 8 canali di telecamere GV-IP per la sorveglianza immessi nella rete. GV-SNVR0811 è dotato di PoE + (IEEE 802.3at) integrato a 8 porte, che funziona per trasportare dati e alimentare le telecamere IP. Dotato di uscita video con risoluzione fino a 4K, GV-SNVR0811 elimina la necessità di un PC separato per visualizzare e riprodurre video dall’unità. Le sue porte USB consentono di collegare un’unità flash USB per importare o esportare le impostazioni di sistema, aggiornare il firmware, salvare i file di snapshot e eseguire il backup dei video in formato AVI.

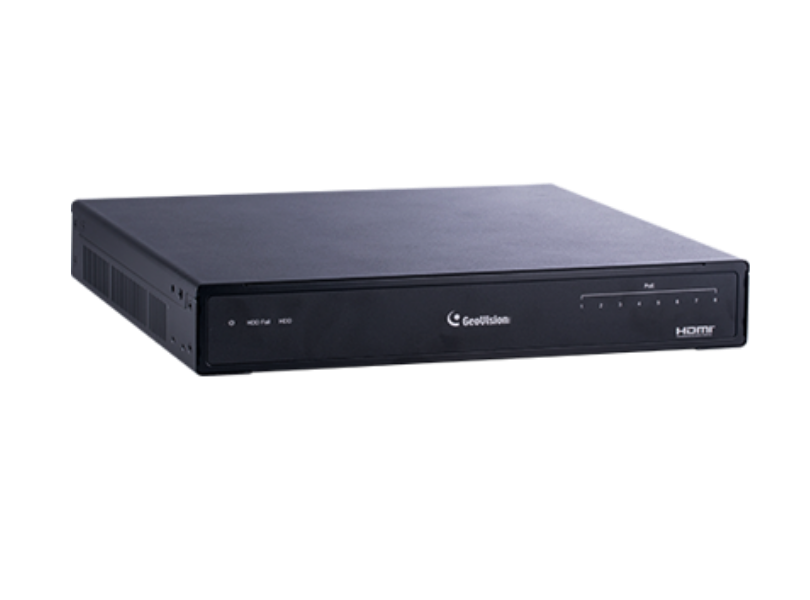

GV-SNVR0811
Specifiche
Note:
- The resolutions of stream 1 and 2 both must meet the requirements noted under Specifications.
- Specifications are subject to change without notice.
- 8-Channel video recording
- Automatic search and set-up for IP cameras
- Support for third‐party IP cameras through ONVIF and RTSP protocol
- Up to 3840 x 2160 resolution for each channel
- Dual streams support
- Continuous, motion and scheduled recordings
- Timeline playback
- Multi-channel playback
- Display of HDD status and system temperature
- DST (Daylight Saving Time) support
- NTP (Network Time Protocol) support
- GeoVision DDNS server support
- E-mail notification for recording error and password retrieval
- Recording export
- Remote live view through Web browser
- Fisheye dewarping
- Support for GV-Video Server through RTSP protocol
- PTZ control using GV-Joystick or on-screen panel
- 8-Port PoE+ (IEEE 802.3at) for camera connection
- 4K HDMI video output
- 1 SATA HDD drawer (3.5″) for up to 8 TB storage
- Smart device access (iOS and Android)
- Support for 13 languages
| Model No | Name | Details | |
|---|---|---|---|
| GV-Joystick V2 | The GV-Joystick V2 facilitates the PTZ camera control. It can be plugged into the GV-SNVR for independent use to empower the operation of PTZ cameras. | ||
| GV-POE Switch | The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports. | ||
- GV-SNVR0811
- AC power cord
- AC/DC adapter (DC 56V, 2.32A, 130W)
- SATA cable
- HDD power cable
- Screw x 4 (for HDD)
- USB mouse
- Download guide
- Warranty card
