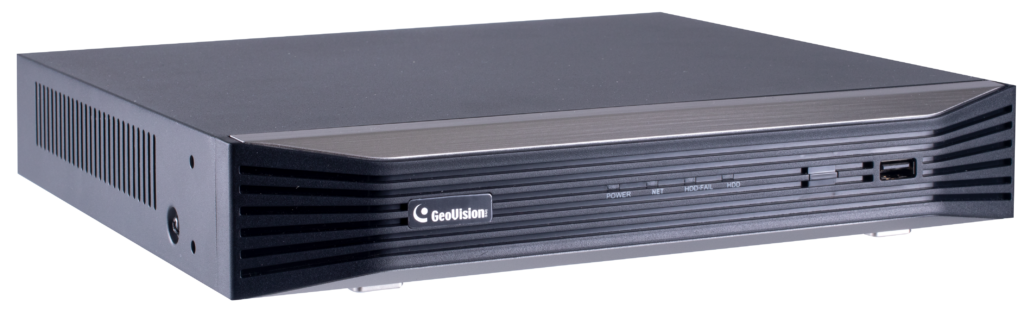

GV-SNVR0412 è un Network Video Recorder autonomo con sistema operativo Linux embedded, compatibile con H.264/H.265. Registra direttamente i file video sull’hard disk interno e supporta fino a 4 canali di dispositivi GV-IP per la sorveglianza di rete. Il GV-SNVR0412 dispone di 4 porte PoE+ integrate (IEEE 802.3at), che consentono di fornire connessione di rete e alimentazione ai dispositivi IP collegati. Con la sua capacità di visualizzazione video fino a risoluzione 4K, il GV-SNVR0412 elimina la necessità di un PC separato per la visualizzazione e la riproduzione dei video. Le porte USB consentono l’inserimento di una chiavetta USB per importare o esportare le impostazioni di sistema, aggiornare il firmware, salvare file di snapshot e creare copie di backup dei video in formato AVI.
GV-SNVR0412
Specifiche
Note:
- Per le telecamere IP supportate, le risoluzioni di Main Stream e Sub Stream devono entrambe soddisfare i requisiti indicati nelle specifiche.
- GV-SNVR supporta solo frame rate di registrazione fino a 30 fps.
- GV-SNVR0412 supporta solo larghezze di banda di registrazione fino a 24 Mbps.
- GV-SNVR0412 supporta anche EVS-ABD1300 / ABL1300 / ADR1300 e UVS-ABD1300 / ABL1300 / ADR1300.
- Il design del prodotto e le specifiche sono soggetti a modifiche senza preavviso.
- 4-Channel video recording
- Up to 3840 x 2160 resolution for each channel
- Dual streams support
- 4-Port PoE+ (IEEE 802.3at) for camera connection
- 4K (HDMI) / 1080P (HDMI/VGA) video output
- Two‐way audio
- 1 SATA HDD drawer (3.5″) for up to 10 TB storage
- Automatic search and set-up for IP cameras
- Support for third‐party IP cameras through ONVIF and RTSP protocol
- Continuous, motion, scheduled and alarm-triggered recording
- Timeline playback
- Multi-channel playback
- Display of HDD status and system temperature
- DST (Daylight Saving Time) support
- NTP (Network Time Protocol) support
- GeoVision DDNS server support
- E-mail notification for recording error and password retrieval
- Recording export
- Remote live view through Web browser
- Fisheye dewarping (up to 2176 x 2048 for 1 channel at a time)
- Support for GV-Video Server through RTSP protocol
- PTZ control using GV-Joystick V2 or on-screen panel
- Smart device access (iOS and Android)
- Support for 14 languages
Model No | Name | Details | |
---|---|---|---|

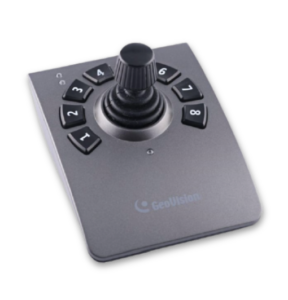

GV-Joystick V2 | ![]() | The GV-Joystick V2 facilitates the PTZ camera control. It can be plugged into the GV-SNVR for independent use to empower the operation of PTZ cameras. | |
GV-POE Switch | The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports. |
- GV-SNVR0412
- AC power cord
- AC/DC adapter (DC 48V, 1.35A, 65W)
- SATA cable
- HDD power cable
- Screw x 4 (for HDD)
- Foam foot
- USB mouse
- Rack mount kit (2 L‐shaped brackets + 4 screws)
- Download Guide
- Warranty card
