Ottica e portata
Campo visivo
53.0°~2.3°
Illuminazione notturna
Infrarosso 150 m
- Diaframma
- Auto / Manual
- Lunghezza focale
- 4.5 ~ 148.5mm
- Campo visivo orizzontale
- 53.0°~2.3°
- Apertura massima
- F/1.5
- Formato sensore
- 1/2.8"
Termini collegati alla documentazione tecnica:
campo visivo,
criterio di Johnson,
NETD.
Caratteristiche
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/2.8" progressive scan CMOS sensor
- Min. illumination at 0.003 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2688 x 1520
- Motorized varifocal lens for remote focus / zoom adjustment
- 33x optical zoom and unlimited digital zoom
- Intelligent IR
- IR distance up to 150 m (500 ft)
- Day and Night function (with removable IR-cut filter)
- Two sensor inputs and one alarm output
- Wide Dynamic Range Pro (WDR Pro)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP66)
- Wide temperature tolerance (-40°C ~ 65°C / -40°F ~ 149°F)
- TV-out support
- Two-way audio
- Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
- DC 24V / AC 24V / PoE+ (IEEE 802.3at)
- Pan 360° endlessly
- Tilt from ‐15° to 90°
- Pan and tilt speed of up to 300°/sec and 240°/sec, respectively
- PTZ movement (Preset, Auto Pan and Patrol)
- PTZ patrol by schedule
- AI analytics (Cross Line, Intrusion, Enter Area, Leave Area, Face Detection, People Flow Counting, Crowd Density Monitoring)
- Auto focus
- 3D noise reduction
- Motion detection
- Privacy mask
- ONVIF (Profile G, S, T) conformant
Registro di responsabilità
- Firmware certificato
- v1.06
- Certificato il
- 16/11/2025
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, unica CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona ·
Scarica firmware e SBOM.
Contenuto della confezione

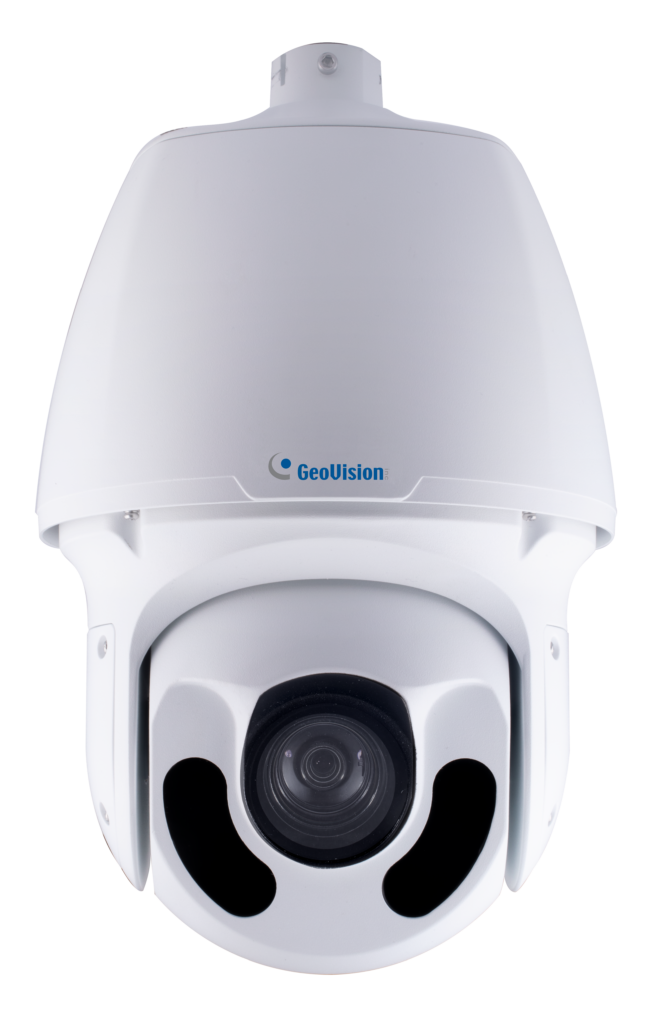

- GV-SD4834-IR
- M4 Hex Key
- Waterproof Rubber Set
- Waterproof Guidelines
- Download Guide
Documentazione
Accessori compatibili
GV-Mount104
Straight Tube Kit · Dimensions: 219 x 125 x 332 mm …
GV-Mount105
Straight Tube and Junction Box Kit · Dimensions: 256 x 256 x…
GV-Mount208-3
Swan Neck Mount · Dimensions: 1043 x 519 x 256 mm ·…
GV-Mount210
Wall Pendant Mount · Dimensions: 200 x 140 x 249 mm ·…
GV-Mount300-1
Convex Corner Adapter Kit · Dimensions: 238.6 x 395.2 x 210 mm…
GV-Mount310-1
Concave Corner Adapter Kit · Dimensions: 111.2 x 369.9 x 210 mm…
GV-Mount400-1
Pole Mount Bracket Kit · Bracket: 68.4 x 240 x 163 mm…
GV-Mount410-1
Pole Mount Bracket Kit · Bracket: 68.4 x 240 x 163 mm…
