Ottica e portata
Campo visivo
62.93°~3.51°
Illuminazione notturna
Infrarosso 150 m
- Diaframma
- Auto / Manual
- Lunghezza focale
- 4.5~148.5mm
- Campo visivo orizzontale
- 62.93°~3.51°
- Apertura massima
- F/1.6
- Formato sensore
- 1/2.8″
Termini collegati alla documentazione tecnica:
campo visivo,
criterio di Johnson,
NETD.
Caratteristiche
- 1/2.8″ progressive scan low lux CMOS sensor
- Min. illumination at 0.03 lux (B/W) and 0.05 lux (color)
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2048 x 1536, 60 fps at 1920 x 1080
- 33x optical zoom and unlimited digital zoom
- Intelligent IR
- IR distance up to 150 m (492 ft)
- Day and night function with IR-cut filter
- Two sensor inputs and one alarm output
- Wide Dynamic Range Pro (WDR Pro)
- Vandal resistance (IK10)
- Ingress protection (IP66)
- Wide temperature tolerance (-40°C ~ 70°C / -40°F ~ 158°F)
- TV-out support
- Two-way audio
- Built-in micro SD card slot (SDHC/SDXC, Class 10) for local storage
- DC 24V / AC 24V
- Pan 360° endlessly
- Tilt from -15° to 195°
- Pan and tilt speed of up to 300°/sec and 240°/sec, respectively
- PTZ movement (Preset, Auto Pan and Patrol)
- PTZ patrol by schedule
- Smart settings (Cross line, Intrusion, Auto tracking)
- Intelligent Mark
- Auto focus
- 3D noise reduction
- Motion detection
- Privacy mask
- CE, FCC, RoHS, UL compliant
Registro di responsabilità
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, unica CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona.
Contenuto della confezione

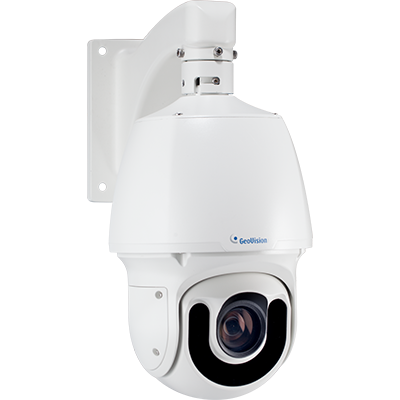

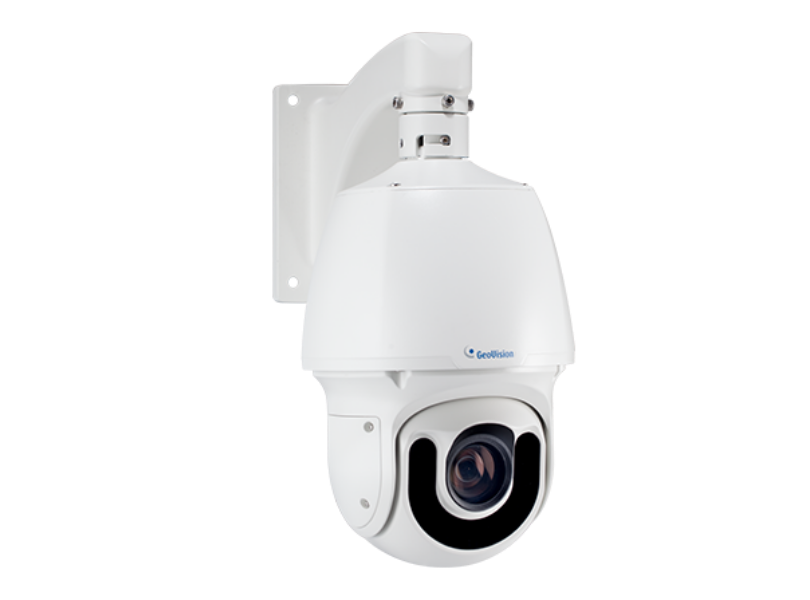

- GV‐SD3732‐IR Speed Dome
- 24V AC Power Adapter
- M4 Hex Key
- Waterproof Rubber Set
- Waterproof Guidelines
- Download Guide
- Warranty Card
Documentazione
Accessori compatibili
GV-Mount104 · Straight Tube Kit · Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1″)
Weight: 1.8 kg (3.97 lb)
GV-Mount105 · Straight Tube and Junction Box Kit · Dimensions: 256 x 256 x 297 mm (10.1 x 10.1 x 11.7″)
Weight: 6.2 kg (13.67 lb)
GV-Mount 208-3 · Swan Neck Mount · Dimensions: 1043 x 519 x 256 mm (41.06 x 20.43 x 10.08″)
Weight: 10.6 kg (23.37 lb)
GV-Mount210 · Pendant Tube · Dimensions: 200 x 140 x 249 mm (7.9 x 5.5 x 9.80″)
Weight: 1.1 kg (2.4. lb)
GV-Mount300-1 · Convex Corner Adapter Kit · Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″)
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 · Concave Corner Adapter Kit · Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2″)
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 · Pole Mount Bracket Kit (Ø 4 ~ 6″) · Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb) · Steel Strap Diameter: Ø 4 ~…
GV-Mount410-1 · Pole Mount Bracket Kit (Ø 6 ~ 7.5″) · Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb) · Steel Strap Diameter: Ø 6 ~…
