Ottica e portata
Campo visivo
58.9°~2.11°
Illuminazione notturna
Infrarosso 250 m
- Diaframma
- Auto / Manual
- Lunghezza focale
- 4.7~129mm
- Campo visivo orizzontale
- 58.9°~2.11°
- Apertura massima
- F/1.6
- Formato sensore
- 1/3″
Termini collegati alla documentazione tecnica:
campo visivo,
criterio di Johnson,
NETD.
Caratteristiche
- 1/3″ progressive scan low lux CMOS sensor
- Min. illumination at 0.1 lux
- Dual streams from H.265, H.264, and MJPEG
- Up to 50 fps at 1920 x 1080
- 30x optical zoom and 32x digital zoom
- Intelligent IR
- IR distance up to 250 m (820 ft)
- Day and Night function (with removable IR-cut filter)
- Wide Dynamic Range Pro (WDR Pro)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP66)
- Wide temperature tolerance (-40°C ~ 70°C / -40°F ~ 158°F)
- Two-way audio
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- DC 24V / AC 24V / High PoE (PoE++, 90 W)
- Four sensor inputs and one digital alarm output
- Pan 360° endlessly
- Tilt from -20° to 200°
- Pan speed at up to 360°/sec and tilt at 400°/sec
- PTZ movement (Preset, Sequence, Auto Pan, Cruise and Tour)
- PTZ movements by schedule
- Auto and manual PTZ calibration
- Auto focus
- 3D noise reduction
- Motion detection
- Privacy mask
- 31 languages on Web interface
Registro di responsabilità
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, unica CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona.
Contenuto della confezione

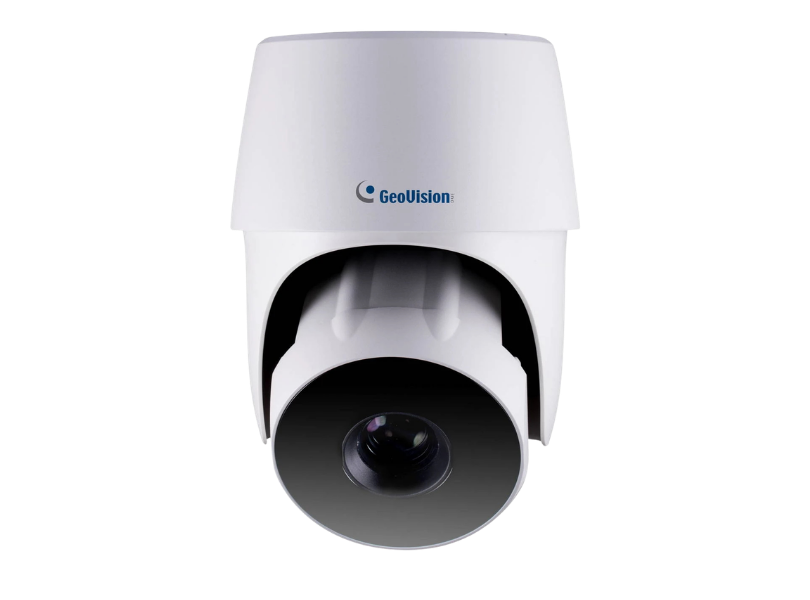

- GV-SD2733-IR IP Speed Dome
- Pendant Tube (GV-Mount207)
- Hex Key x 2
- Rubber Ring
- RJ-45 Connector
- Data Cable
- Download Guide
- Warranty Card
Accessori compatibili
GV-Mount102 · Straight Tube Box Mount · Dimensions: 256 x 256 x 316 mm (10.1 x 10.1 x 12.4″)
Weight: 6.6 kg (14.6 lb)
GV-Mount103 · Straight Tube Mount · Dimensions (L x W x D): 340 x 219 x 125 mm (13.4 x 8.6 x 4.9″)
Weight: 2.2 kg (4.9 lb)
GV‐Mount103‐1 · Straight Tube Mount · Dimensions (L x W x D): 240 x 219 x 125 mm (9.4 x 8.6 x 4.9″)
Weight: 1.76 kg (3.88 lb)
GV-Mount 208-1 · Swan Neck Mount · Dimension: 1043 x 565 x 256 mm (41.06 x 22.24 x 10.08″)
Weight: 10.6 kg (23.37 lb)
GV-Mount300-1 · Convex Corner Adapter Kit · Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″)
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 · Concave Corner Adapter Kit · Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2″)
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 · Pole Mount Bracket Kit (Ø 4 ~ 6″) · Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb) · Steel Strap Diameter: Ø 4 ~…
GV-Mount410-1 · Pole Mount Bracket Kit (Ø 6 ~ 7.5″) · Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb) · Steel Strap Diameter: Ø 6 ~…
