Ottica e portata
Campo visivo
58.9°~2.11°
- Diaframma
- Auto / Manual
- Lunghezza focale
- 4.3~129 mm
- Campo visivo orizzontale
- 58.9°~2.11°
- Apertura massima
- F/1.6
- Formato sensore
- 1/3″
Termini collegati alla documentazione tecnica:
campo visivo,
criterio di Johnson,
NETD.
Caratteristiche
- 1/3″ progressive scan low lux CMOS
- Min. illumination at 0.1 lux
- Dual streams from H.265, H.264, and MJPEG
- 30 / 50 fps at 1920 x 1080 (60 / 50 Hz)
- 30x optical zoom and 32x digital zoom
- Wide Dynamic Range Pro (WDR Pro)
- Day and night function with IR-cut filter
- Vandal resistance (IK10 for metal and polycarbonate casing)
- Ingress protection (IP67)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- 4 digital inputs, 1 relay output
- DC 24V / AC 24V / High PoE (PoE++, 90 W)
- Pan 360° endlessly
- Tilt from -15° to 195°
- Preset speed at up to 460° /sec
- PTZ movement (Preset, Sequence, Auto Pan, Cruise and Tour)
- PTZ movements by schedule
- Auto and manual PTZ calibration
- Auto focus
- 3D noise reduction
- Two-way audio
- Motion detection
- Privacy mask
- Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
- Smart phones & 3GPP support
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Registro di responsabilità
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, unica CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona.
Contenuto della confezione

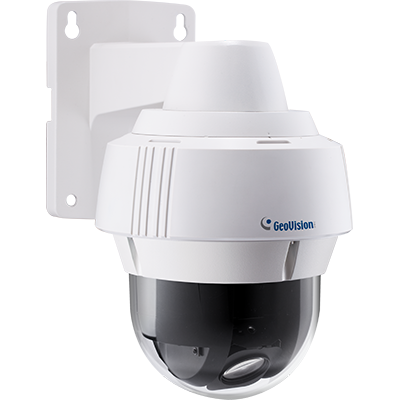

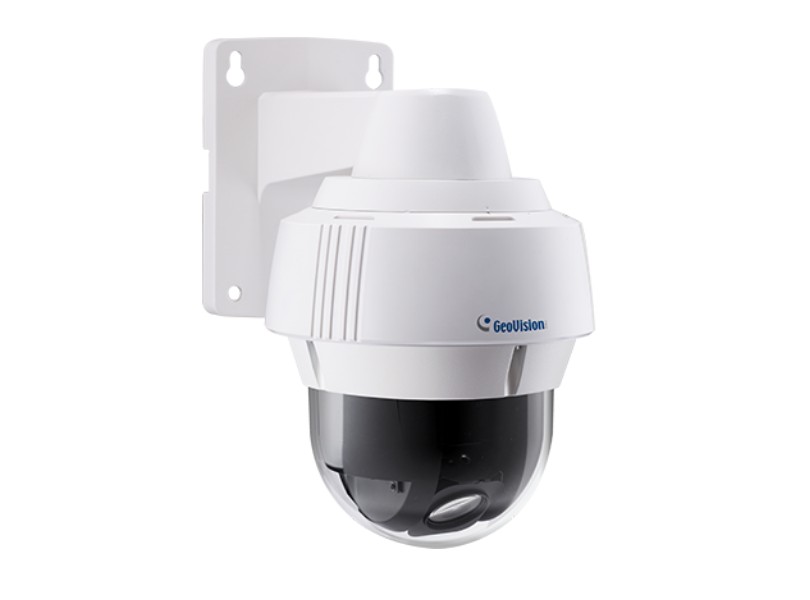

- Outdoor IP Speed Dome
- Pendant Tube (GV-Mount 207)
- Hex Key x 2
- Rubber Ring
- RJ-45 Connector
- Desiccant Pack x 2
- Data Cable
- Download Guide
- Warranty Card
Accessori compatibili
GV-Mount300 · Convex Corner Adapter Kit · Dimensions: 238.6 x 409.5 mm (9.4 x 16.1″)
Weight: 4.27 kg (9.41 lb)
GV-Mount310 · Concave Corner Adapter Kit · Dimensions: 123.3 x 393.1 mm (4.9 x 15.5″)
Weight: 2.96 kg (6.53 lb)
GV-Mount400 · Pole Mount Bracket Kit ( 4 ~ 6″) · Bracket: 241 x 161 mm (9.5 x 6.3″)
Weight: 1.70 kg (3.75 lb) · Steel Strap Diameter: 4 ~…
GV-Mount410 · Pole Mount Bracket Kit ( 6 ~ 7.5″) · Bracket: 241 x 161 mm (9.5 x 6.3″)
Weight: 1.70 kg (3.75 lb) · Steel Strap Diameter: 6 ~…
GV-Relay V2
The GV-Relay V2 is designed to expand the voltage load of GV…
GV-POE Switch · The GV-POE Switch is designed to provide power along with network connection for IP devices.
The GV-POE Switch is available in various models with different numbers and…
