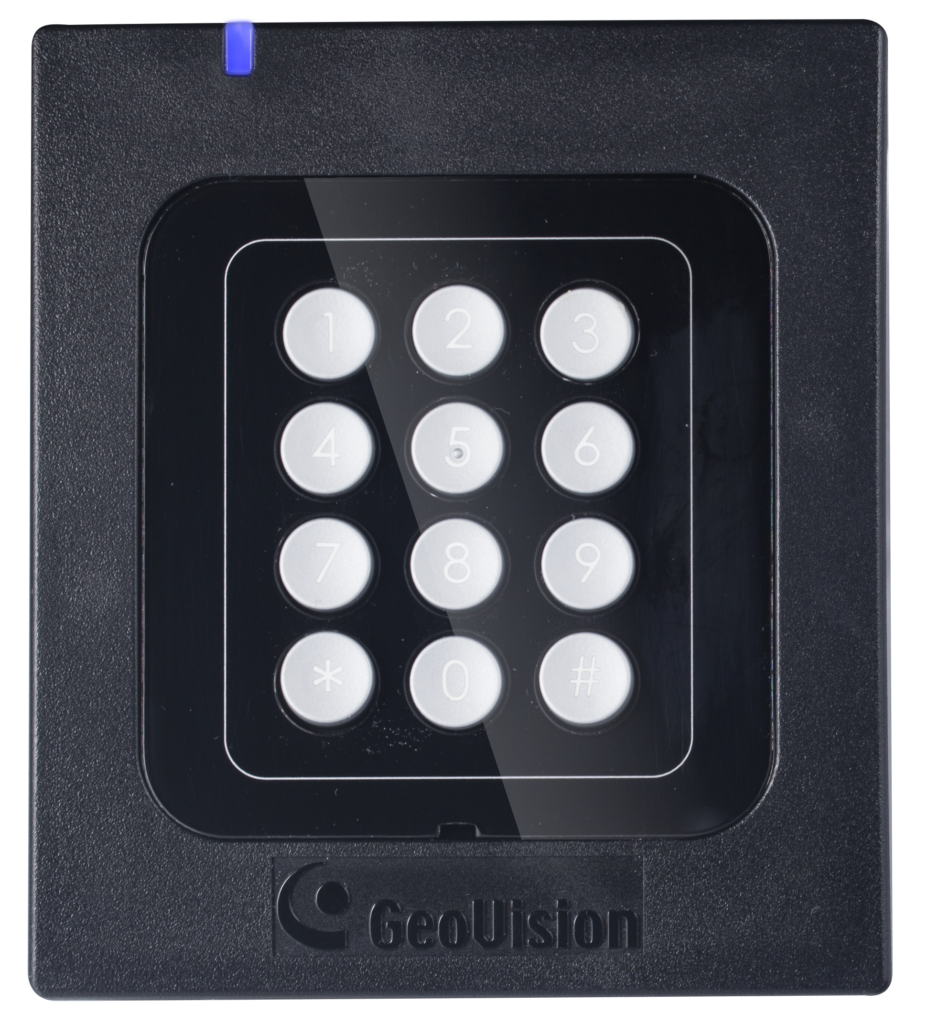

GV-RK1352 è un lettore di schede, configurato per riconoscere codici PIN, carte di identificazione o entrambi. In primo piano con le uscite Wiegand e RS-485, l’unità può essere collegata a un pannello di controllo di accesso standard. GV-RK1352 viene fornito con un involucro sigillato a tenuta stagna e conforme IP66 per uso esterno.
GV-RK1352
Specifiche
Note:
- RS485 interface only supports GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26/34 Bits).
- UL 294 Attack Class Level 1 depends on other connected equipment.
- If you are using third-party cards or key fobs, the reader must be under UID mode.
- Specifications are subject to change without notice.
- Card reader with keypad
- Identification card and PIN code recognition
- Weather-proof and IP66-compliant housing (for outdoor use)
- RS-485 output: 9,600 bps, connect up to 8 GV-RK1352 units
- 13.56 MHz for ISO14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic)
- Support for GV-Proximity Cards with GID (Geovision Identifier) to enhance security
| Model No | Name | Details | |
|---|---|---|---|
| GV-MountA900 |  | 100 x 68 mm (3.9 x 2.7″) Supported Power Box Type:Single Gang (US standard) | |
| GV-AS ID Card & GV-AS ID Key Fob | For Card Mode, the GV-AS ID Card / Tag is required. 13.56 MHz cards and tags are available. | ||
- GV-RK1352 Card Reader
- Screw x 2
- Screw Anchor x 2
- Front Cover Plate x 2
- Software CD
- Installation Guide
- Warranty Card
