Ottica e portata
Campo visivo
180°
Illuminazione notturna
Infrarosso 10 m
- Diaframma
- Fixed
- Lunghezza focale
- 1.6mm
- Campo visivo orizzontale
- 180°
- Apertura massima
- F/2
- Formato sensore
- 1/2.3"
Termini collegati alla documentazione tecnica:
campo visivo,
criterio di Johnson,
NETD.
Caratteristiche
- 1/2.3" progressive scan CMOS sensor
- Min. illumination at 0.01 lux
- Triple streams from H.265, H.264
- Up to 15 fps at 3840 x 3000
- Day and Night function (with removable IR-cut filter)
- Intelligent IR
- Ingress protection (IP66)
- IR distance up to 10 m (35 ft)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- Built-in microphone and speaker
- One sensor input and one alarm output
- DC 12V/ PoE (IEEE 802.af)
- 360° and 180° panorama views
- Wide Dynamic Range (WDR)
- Motion detection
- Tampering alarm
- Privacy mask
- Two-way audio capable
- 3D noise reduction
- Text overlay
- 12 languages supported
- ONVIF (Profile G, S, T) conformant
Registro di responsabilità
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, prima CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona.
Contenuto della confezione

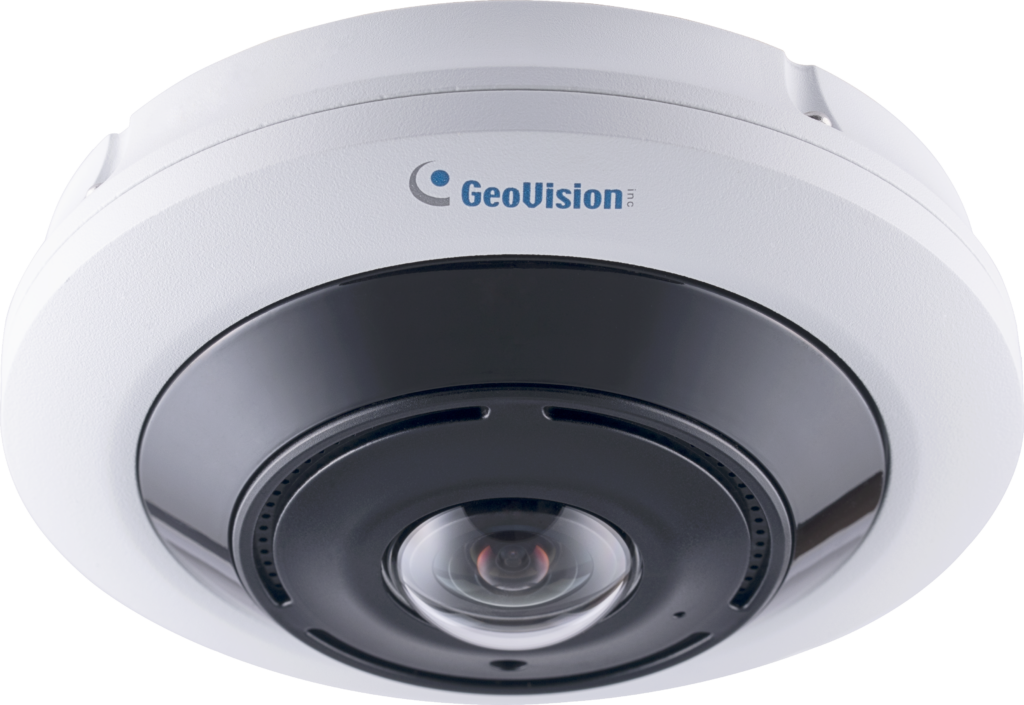

- GV-RFER12700 Fisheye Camera
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Download Guide
Documentazione
Accessori compatibili

GV-Mount108
Pendant Mount · Dimensions: H=294mm (11.5″). Weight: 0.7g (1.54 lb)

GV-Mount210-2
Wall Pendant Mount · Dimensions: 169 x 98 x 180mm

GV-Mount213-1
Wall Box Mount

GV-Mount206
Wall Box Mount

GV-Mount 311
Corner Adaptor · Dimension:172.8 x 271.4x 200mm Weight: 2.35kg (5.18 lb)

GV-Mount504-1
Wall Mount Bracket · Dimensions: Ø 126 x 68.9mm

GV-PA191
PoE Adapter

GV-PA301
Gigabit PoE Adapter
