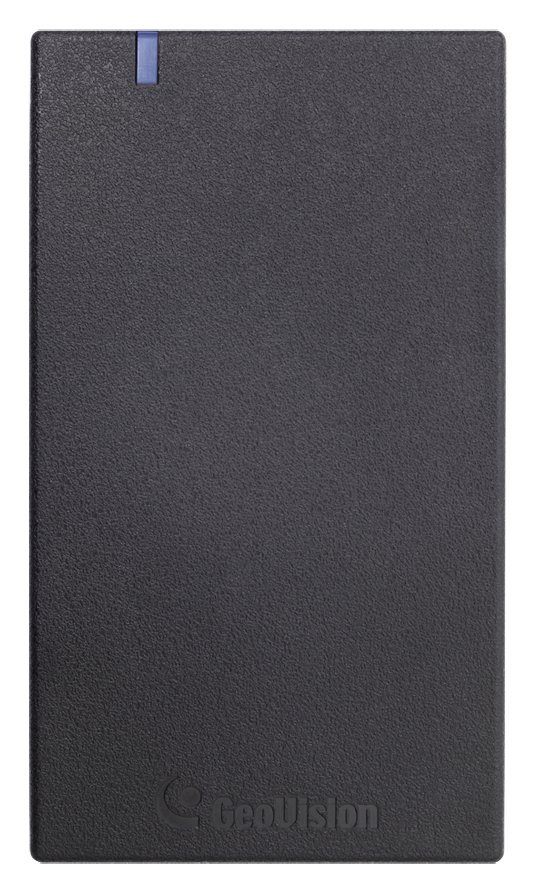

GV-R1352 è un lettore di schede progettato per riconoscere le carte di identificazione. Dotato di uscite Wiegand e RS-485, l’unità può essere collegata a qualsiasi sistema standard.
GV-R1352
Specifiche
- Weather-proof and IP66-compliant housing (for outdoor use)
- Wiegand interface for third-party integration
- RS-485 interface for longer distance installation
- 13.56 MHz ISO 14443A
- GeoVision access cards with GID (GeoVision Identifier) support
- UL 294 compliant
Note:
- RS485 interface only supports GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26/34 Bits).
- UL 294 Attack Class Level 1 depends on other connected equipment.
- If you are using third-party cards or key fobs, the reader must be under UID mode.
- Specifications are subject to change without notice.
| Model No | Name | Details | |
|---|---|---|---|
| GV-MountA900 |  100 x 68 mm (3.9 x 2.7″)Supported Power Box Type:Single Gang (US standard) | ||
| Access Card / Fob / Sticker / Tag | GeoVision offers a wide range of access cards, fobs, stickers, and tags to meet your needs. Please refer to the product datasheet for information on compatible frequencies and accessories. | ||
| GV-FWC | GV-FWC integrates GeoVision face-recognition-based cameras, software and readers into access control systems by sending access card data, paired to Face IDs, to controllers either through TCP/IP or Wiegand connection. | ||
- GV-R1352 Card Reader
- Screw x 3
- Screw Anchor x 2
- Security Torx
- Software CD
- Installation Guide
- Warranty Card
