Ottica e portata
Campo visivo
FE: 180° · SD: 58.9°~2.11°
- Diaframma
- FE: Fixed · SD: Auto / Manual
- Lunghezza focale
- FE: 1.505 mm · SD: 4.3~129 mm
- Campo visivo orizzontale
- FE: 180° · SD: 58.9°~2.11°
- Apertura massima
- FE: F/2.0 · SD: F/1.6
- Formato sensore
- FE: 1/1.7″ · SD: 1/3″
Termini collegati alla documentazione tecnica:
campo visivo,
criterio di Johnson,
NETD.
Caratteristiche

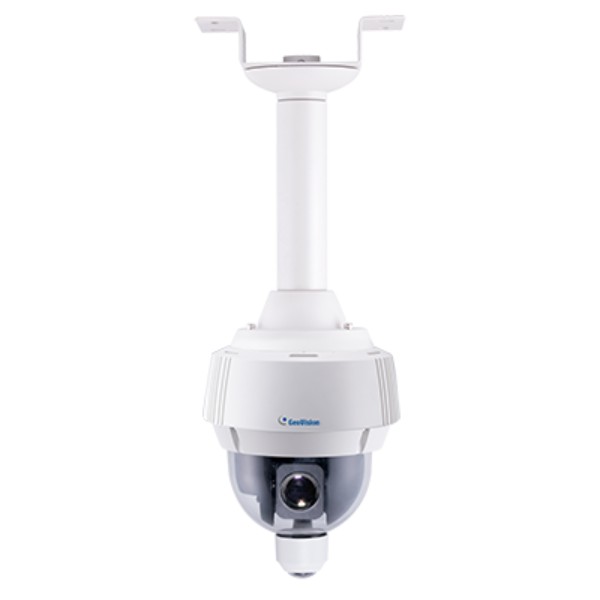

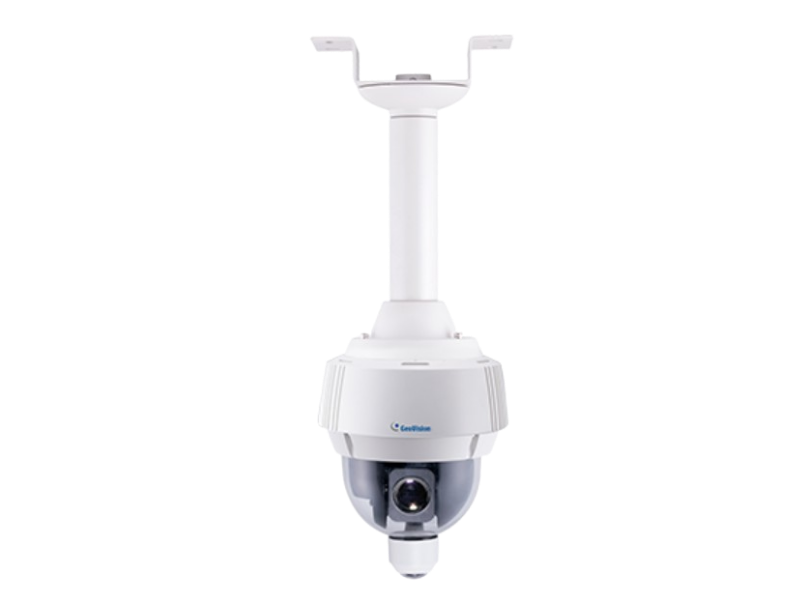

- Panoramic fisheye camera (FE) integrated with a PTZ speed dome (SD)
- FE: 1/1.7″ progressive scan low lux CMOS
- SD: 1/3″ progressive scan low lux CMOS
- Dual streams from H.265 (SD Only), H.264 and MJPEG
- FE: Up to 15 fps at 4000 x 3000
- SD: Up to 30 fps at 1920 x 1080 (60 Hz), 50 fps at 1920 x 1080 (50 Hz)
- FE: Day and night (Electronic)
- SD:Day and night function with IR-cut filter
- SD: Wide Dynamic Range Pro (WDR Pro)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- Wide temperature tolerance (-40°C ~ 50°C / -40°F ~ 122°F)
- FE: 1 built-in Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- SD: 1 built-in SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- 4 sensor inputs and 1 alarm output
- DC 24V / AC 24V / High PoE (PoE++, 53 W)
- FE: Provides 360° panoramic view
- SD: 30x optical zoom and 32x digital zoom
- SD: pan 360° and tilt from -15° to 195°
- SD: Preset speed at up to 460°/sec
- SD: PTZ movement (Preset, Sequence, Auto Pan, Cruise and Tour)
- Two-way audio
- 2D noise reduction
- Tampering alarm
- Privacy mask
- Visual automation
- Text overlay
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Registro di responsabilità
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, unica CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona.
Accessori compatibili
GV-Mount102 · Straight Tube Box Mount · Dimensions: 256 x 256 x 316 mm (10.1 x 10.1 x 12.4″)
Weight: 6.6 kg (14.6 lb)
GV‐Mount103‐1 · Straight Tube Mount · Dimensions (L x W x D): 240 x 219 x 125 mm (9.4 x 8.6 x 4.9″)
Weight: 1.76 kg (3.88 lb)
GV-Mount207 · Pendant Tube · Dimensions: 151.6 x 203.6 x 302.8 mm / (5.97 x 8.02 x 11.92″)
Weight: 1.43 kg (3.15 lb)
GV-Mount 208-1 · Swan Neck Mount · Dimension: 1043 x 565 x 256 mm (41.06 x 22.24 x 10.08″)
Weight: 10.6 kg (23.37 lb)
GV-Mount300-1 · Convex Corner Adapter Kit · Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″)
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 · Concave Corner Adapter Kit · Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2″)
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 · Pole Mount Bracket Kit (Ø 4 ~ 6″) · Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb) · Steel Strap Diameter: Ø 4 ~…
GV-Mount410-1 · Pole Mount Bracket Kit (Ø 6 ~ 7.5″) · Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb) · Steel Strap Diameter: Ø 6 ~…
