Ottica e portata
Campo visivo
96°
- Diaframma
- Fixed
- Lunghezza focale
- 2.8mm
- Campo visivo orizzontale
- 96°
- Apertura massima
- F/2.0
- Formato sensore
- 1/2.7″
Termini collegati alla documentazione tecnica:
campo visivo,
criterio di Johnson,
NETD.
Caratteristiche
- 1/3″ progressive scan super low lux CMOS
- Min. illumination at 0.002 lux
- Triple streams from H.265, H.264 and MJPEG
- Up to 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520
- Two-way audio
- Intelligent IR
- 3-axis mechanism (pan / tilt / rotate)
- One sensor input and one alarm output
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
- Day and Night function (with removable IR-cut filter)
- Megapixel lens
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- 3D noise reduction
- Smart streaming
- Defog
- Motion detection
- Tampering alarm
- Text overlay
- Privacy mask
- IP address filtering
- Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Registro di responsabilità
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, unica CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona.
Contenuto della confezione

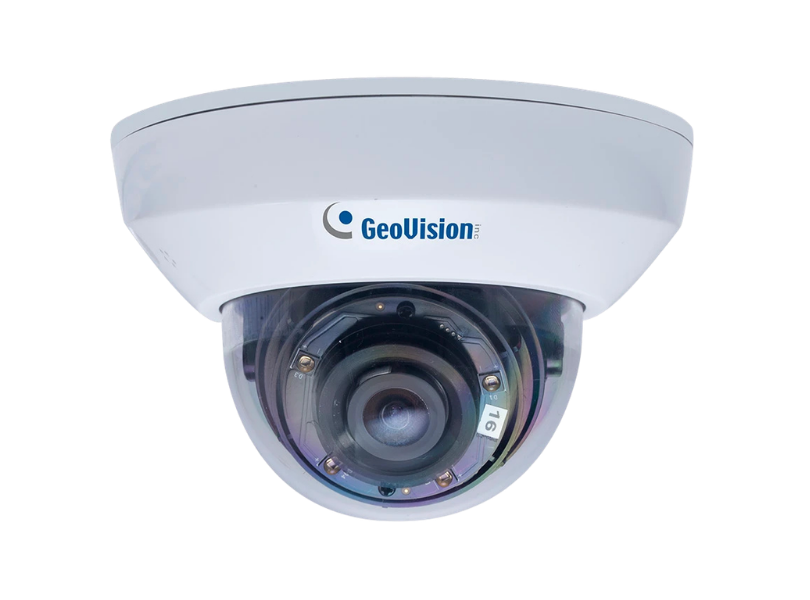

- H.265 Mini Fixed IP Dome
- Screw x 2
- Screw Anchor x 2
- Focus Adjustment Ring (only for GV-MFD4700-0F/2F)
- Installation Sticker
- Audio and I/O extended cable
- Torx Wrench
- Download Guide
- Warranty Card
Accessori compatibili
GV-Mount909 · Wall Mount Bracket · Dimensions: 170 x 150 x 110 mm (6.7 x 5.9 x 4.3″)
Weight: 0.61 kg (1.34 lb)
GV-Mount910 · Power Box Mount Bracket · Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3″)
Weight: 105 g (0.23 lb)
GV-Mount913 · Power Box Mount Bracket · Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3″)
Weight: 180 g (0.4 lb)
GV-Mount918 · Wall Mount Bracket for MFD/MDR/EFD/EDR · Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71 x4.60 x 3.78″)
Weight: 350 g (0.77 lb)
GV-PA191 PoE Adapter
Power over Ethernet (PoE) Adapter · The GV-PA191 is a Power over…
GV-POE Switch · The GV-POE Switch is designed to provide power along with network connection for IP devices.
The GV-POE Switch is available in various models with different numbers and…
