Ottica e portata
Campo visivo
55.2°(W)~7.1°(T)
Illuminazione notturna
Infrarosso 22 m
- Diaframma
- Auto / Manual
- Lunghezza focale
- 5.1~51mm
- Campo visivo orizzontale
- 55.2°(W)~7.1°(T)
- Apertura massima
- F/1.6
- Formato sensore
- 1/2.8″
Termini collegati alla documentazione tecnica:
campo visivo,
criterio di Johnson,
NETD.
Caratteristiche
- Built-in deep learning LPR processor for license plate recognition
- Dual-lane recognition
- 1/2.8" progressive scan super low lux CMOS
- Min. illumination at 0.04 lux
- Third streams from H.265, H.264 and MJPEG
- Up to 30 fps at 1920 x 1080
- Motorized varifocal lens for remote focus / zoom adjustment
- Intelligent IR
- IR distance up to 22 m (70 ft)
- Day and Night function (with removable IR-cut filter)
- Wide Dynamic Range Pro (WDR Pro)
- DC 12V / PoE (IEEE 802.3af)
- Ingress protection (IP67)
- Vandal resistance (IK10 for metal casing)
- Standalone database
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- Digital I/O (1 in / 1 out)
- Recognize vehicles with speeds up to 100 km/h (62 mph)
- Log Export
- LPR results overlaid on recognition images
- One-way audio capable
- Motion detection
- Privacy Mask
- IP address filtering
- CE, FCC, UKCA, LVD, RoHS compliant
Registro di responsabilità
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, unica CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona.
Contenuto della confezione

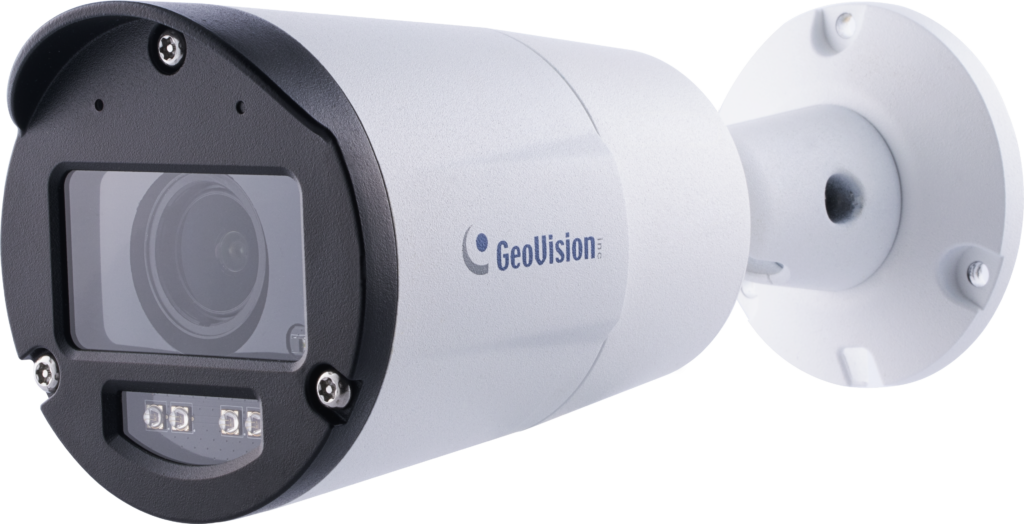

- GV-LPR2812-DL Camera
- Drilling Sticker
- Screw Kit
- Waterproof Rubber Set
- microSD Card (already formatted and inserted)
- Download Guide
Documentazione
Accessori compatibili
GV-Mount450
Pole Mount · Dimensions: 125 x 165 x 30 mm · Weight:…
GV-Mount514
Junction Box · Dimensions: 132.3 x 132.3 x 51.5 mm (5.21 x…
GV-Relay V2
GV-Relay V2 expands GV-IP device voltage load. It has 4 relay outputs…
GV-PA191 – PoE Adapter
Dimensions (H x W x D): 43 x 69 x 40 mm…
GV-PA301 – Gigabit PoE Adapter
GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
GV-POE Switch
GV-POE Switch is designed to provide power along with network connection to…
Power Adapter
Contact our sales representatives for the countries and areas supported.
