GV-IP Decoder Box Ultra è progettato per decodificare e visualizzare fino a 64 video IP in visualizzazione singola, 4-divisione, 6-divisione, 8-divisione e 9-divisione. Supporta telecamere IP di terze parti conformi a RTSP o ONVIF e può cercare automaticamente tutte le telecamere ONVIF-compatibili nella stessa LAN. Utilizzato con un singolo monitor, GV-IP Decoder Box Ultra offre una soluzione economica per la videosorveglianza rispetto alla configurazione tradizionale con DVR e PC. L’amministratore della sicurezza può monitorare i canali, scattare istantanee di momenti critici e mettere in pausa un canale in caso di eventi. GV-Joystick V2 può essere installato per controllare qualsiasi telecamera PTZ/Speed Dome collegata a GV-IP Decoder Box Ultra.

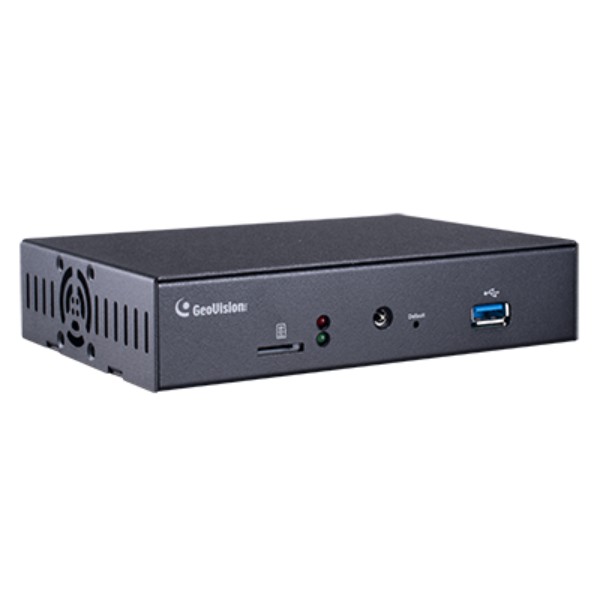

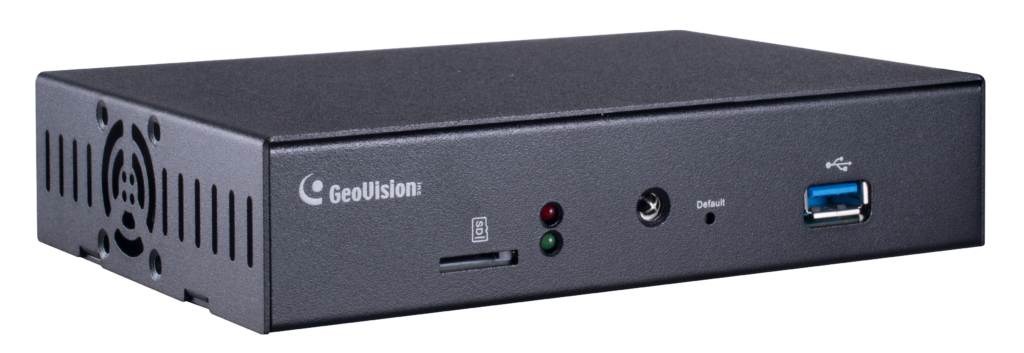

GV-IP Decoder Box Ultra
Specifiche
Note:
- Le specifiche sono soggette a modifiche senza preavviso.
- Nessuno slot per schede SD/SDHC e funzione di archiviazione locale per l’Argentina.
- Decode video streams in H. 264 / H.265 codec up to 30 fps
- Decode up to 8 megapixel IP cameras
- Decode up to 64 IP streams
- Automatically search for ONVIF IP devices
- Support for Single, 4-Divsion, 6-Division, 8-Division, and 9-Division View
- Display of Matrix view through GV-Mobile Server
- Support for 10/100 Ethernet over LAN
- DC 12V / PoE (IEEE 802.3af)
- HDMI video output resolutions up to 4K
- Control the user interface using GV-IR Remote Control
- Control PTZ and Speed Dome cameras using GV-Joystick V2
- Remote firmware upgrade, IP address configuration and addition of new channel
- Micro SD card and USB drive for snapshot storage and firmware upgrade
Model No | Name | Details | |
---|---|---|---|
Wall Mount Kit | Use the Wall Mount Kit to install your GV-IP Decoder Box Ultra on wall. | ||
GV-Joystick V2 | GV-Joystick V2 facilitates focusing, zooming, panning, tilting of GeoVision and third-party PT, PTZ and Speed Dome cameras on GV-IP Decoder Box Ultra. | ||
HDMI Cable | Use the HDMI cable to connect GV-IP Decoder Box Ultra with a HDMI monitor for high-quality display of images. Length: 150 cm (4.92 ft) Version: 1.4a | ||
GV-POE Switch | The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports. | ||
Power Adapter | Contact our sales representatives for the countries and areas supported. |
- GV-IP Decoder Box Ultra
- GV-IR Remote Control
- Download Guide
- Warranty Card
