Ottica e portata
Campo visivo
96°-32.33°
Illuminazione notturna
Warm LED 40 m · Infrarosso 40 m
- Diaframma
- Motorized varifocal lens
- Lunghezza focale
- 2.8-12mm
- Campo visivo orizzontale
- 96°-32.33°
- Apertura massima
- F/1.4
- Formato sensore
- 1/3"
Termini collegati alla documentazione tecnica:
campo visivo,
criterio di Johnson,
NETD.
Caratteristiche
- Direct-to-Cloud
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/3" progressive scan CMOS sensor
- Triple streams from H.265, H.264 or MJPEG
- Min. illumination at 0.02 lux
- Up to 30 fps at 2592 x 1520
- Smart Warm LED distance up to 40 m (130 ft)
- Intelligent IR
- IR distance up to 40 m (130 ft)
- Wide Dynamic Range Pro (WDR Pro)
- Built-in microphone and speaker
- Built-in micro SD card slot (SD/SDHC/UHS-I) for local storage
- 3-axis mechanism (pan / tilt / rotate)
- Ingress protection (IP66)
- Vandal resistance (IK10 for metal casing)
- DC 12V / PoE (IEEE 802.3af)
- Defog
- 3D noise reduction
- GV-Center V2 connection
- AI analytics (Line Crossing, Region Entrance, Region Exiting, Tagret Counting, Region Intrusion, Face Detection, Heat Map)
- Active Deterrence: alarm sound and LED light triggered on AI detection events
- Smart lighting switch between IR LED (for motion detection) and Warm LED (for people detection)
- Motion detection
- Text overlay
- Privacy mask
- 12 languages supported
- ONVIF (Profile G, S, T) conformant
Registro di responsabilità
- Firmware certificato
- v1.03
- Certificato il
- 16/11/2025
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, unica CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona ·
Scarica firmware e SBOM.
Contenuto della confezione

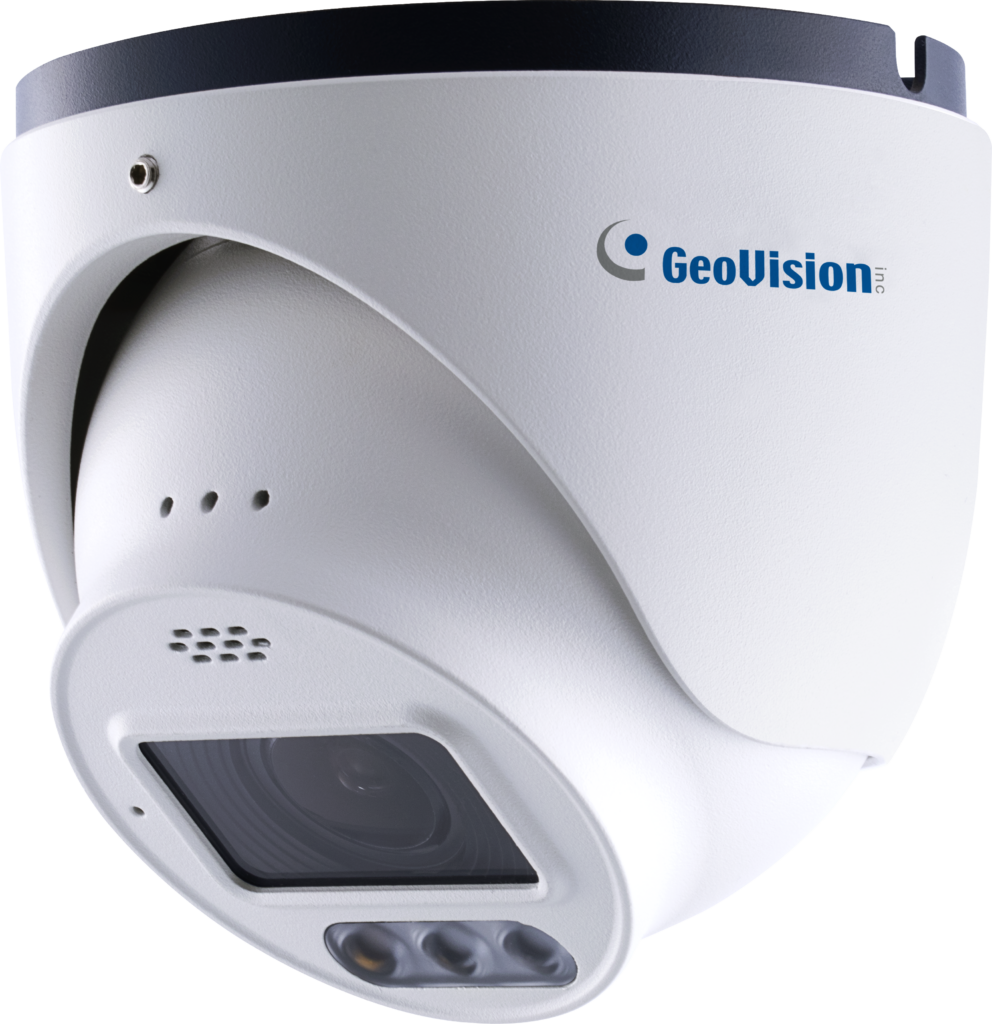

- GV-GEBF4911 Eyeball Dome
- Waterproof Rubber Set
- Screw Kit
- Hex Key
- Drill Template Paster
- Download Guide
