Face Recognition Reader
Il lettore di riconoscimento facciale può funzionare con GV-AS Controller e GV-ASManager per creare un sistema di controllo accessi completo. Sono supportati due tipi di modalità operative: Face Recognition o Card.

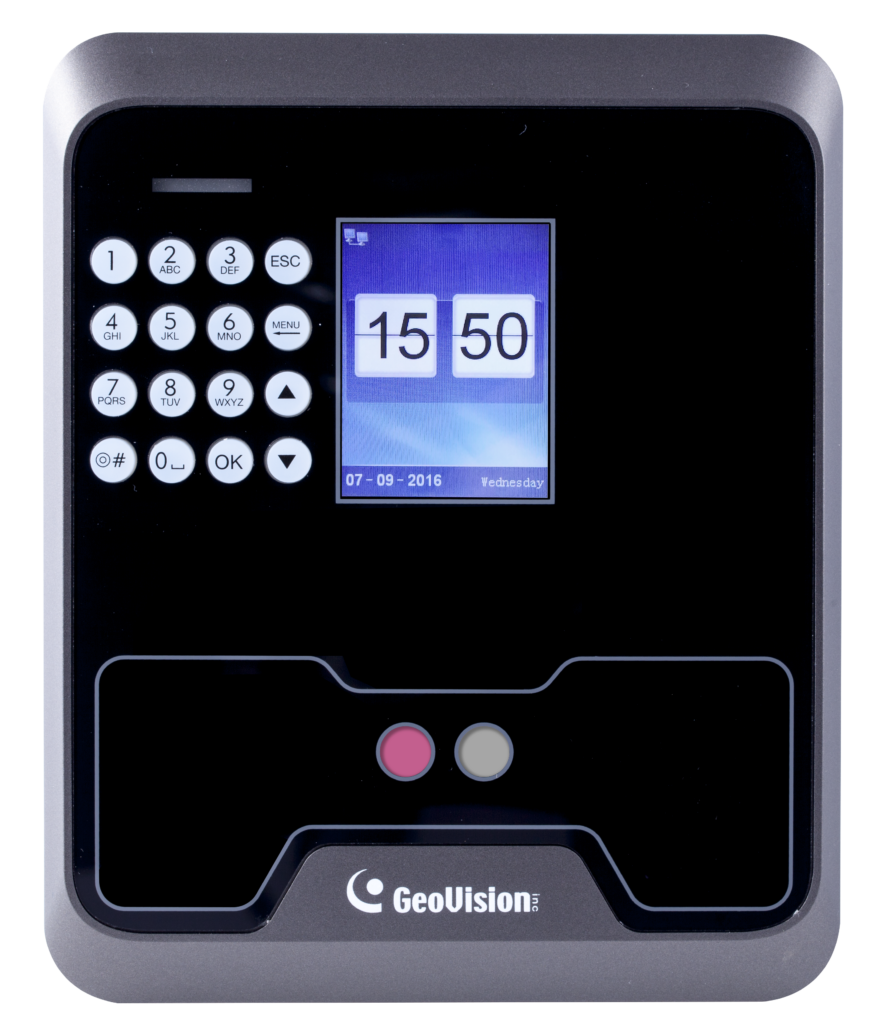

GV-FR2020
Specifiche
Note:
- Per la sincronizzazione dei dati con GV-AS Controller e GV-ASManager tramite Ethernet, è supportata solo la seguente versione del firmware del controller e la versione del software:
- GV-ASManager: V4.4.2 o successiva
- GV-AS210 / 2110 / 2120: V1.41 o successiva
- GV-AS410 / 4110: V1.41 o successiva
- GV-AS810 / 8110: V1.41 o successiva
- Tutte le specifiche sono soggette a modifiche senza preavviso.
- 2.4″ TFT color screen, 320 x 240 pixel display
- Special stereo dual sensors (Lens and IR sensor)
- Up to 80 cm (31. 50 in) detection range
- 2000 face capacity
- ≤ 0.5 second verification speed
- 16-bit Hi-Fi voice and sound indication
- 12V DC, 2 A (only for standalone operation) / PoE+ (IEEE 802.3at)
- Built-in 13.56 MHz Reader
- Work with GV-AS21 / 41 / 81 series Controller and GV-ASManager
- Can work as a standalone reader
- Two (2) access modes for the integration with GeoVision controller and software: Face Recognition mode or Card mode
- Anti-Passback (APB) support
- CE, FCC compliant
| Model No | Name | Details | |
|---|---|---|---|
| GV-AS ID Card & GV-AS ID Key Fob | For Card Mode, the GV-AS ID Card / Tag is required. 13.56 MHz cards and tags are available. | ||
| Power Adapter | Contact our sales representative for the countries and areas supported. Note this is only required for standalone mode. | ||
| GV-POE Switch | The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports. Note GV-FR2020 is only compatible with mid-span PoE power supply type. | ||
- Face Recognition Reader
- Mounting Plate
- Standard Screw x 4
- Plastic Screw Anchor x 4
- Security Screw
- Data Cable
- Warranty Card
