GV-FER5701

Name: GV-FER5701 - Gvision
Brand: Fisheye

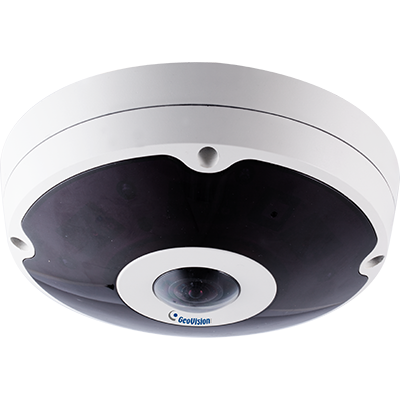

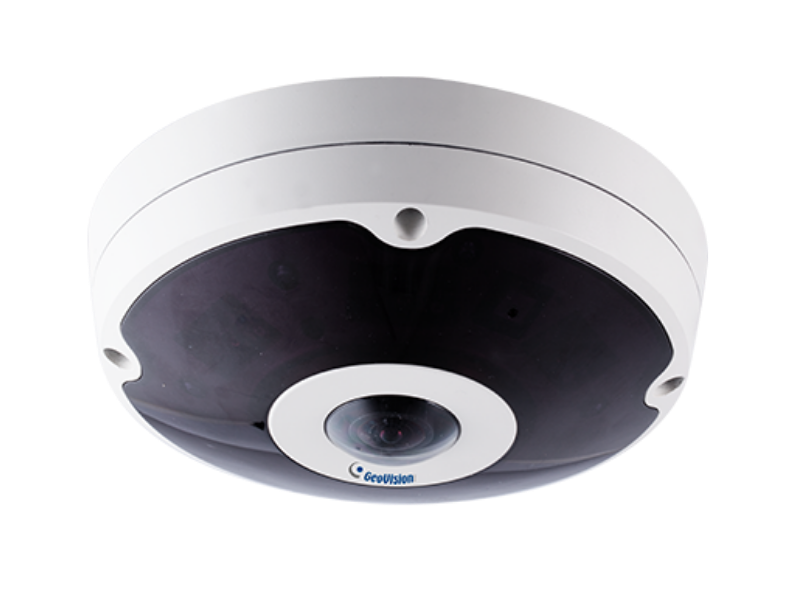

5MP H.265 Low Lux WDR Pro IR Fisheye Rugged IP Camera

GV‐FER5701 is a 5 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling and the wall. Equipped with automatic IR‐cut filter and IR LEDs, GV‐FER5701 is capable of day and night surveillance. GV‐FER5701 supports H.265 video codec to achieve better compression ratio while maintaining high video quality at reduced network bandwidths. Without installing any software, you can watch live view and utilize functions such as video recording, privacy mask and alert notification through its Web interface. In addition, the camera seamlessly integrates with GV‐DVR / NVR / VMS, providing advanced monitoring and video management features.

Categorie: Fisheye, IP Camera

Specifiche

Model	GV-FER5701
Iris	Fixed
Focal Length (mm)	1.05mm
Horizontal FOV	180°
Maximum Aperture	F/2.8
Image Format	1/2.5″

Note:
- No memory card slot & local storage function for Argentina.
- Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- For GV-Mount200 / 206, leave a distance of 1M or more between the camera body and the wall to ensure the image quality.
- Specifications are subject to change without notice.

Key Features

1/2.5″ progressive scan low lux CMOS
Triple streams from H.265, H.264 and MJPEG
Up to 30 fps at 2592 × 1944
Day and Night function (with removable IR-cut filter)
Intelligent IR
Vandal resistance (IK10+ for metal casing)
Ingress protection (IP67)
DC 12V / PoE+ (IEEE 802.3at)
Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
USB slot for GV-WiFi Adapter or USB hard drive
One sensor input and one alarm output
Built-in microphone
Digital Object Tracking
Provides 360° and 180° panorama view
Stereographic projection to reduce the distortion of the image
Different angle of view accessible by multiple users at the same time
Playback from any view angle and zoom level
No mechanical moving parts
Two-way audio
Wide Dynamic Range Pro (WDR Pro)
Low lux enhancement
3D noise reduction
Smart streaming
Tampering alarm
Virtual PTZ function
Auto Pan function
Privacy mask
Visual automation
Text overlay
31 languages on Web interface
ONVIF (Profile S, T) conformant
Recording assigned by GV-Edge Recording Manager (Windows version)
TAICS IoT Cyber Security certified

Overview

Accessories

Model No	Name	Details
GV-Mount100	Straight Tube and Junction Box Kit		Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1″) Weight: 3.17 kg (6.99 lb)
GV-Mount101	Straight Tube Kit		Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1″) Weight: 1.8 kg (3.97 lb)
GV-Mount200	Wall Pendant Mount		Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8″) Weight: 900 g (1.98 lb)
GV-Mount203	Wall Mount and Junction Box		Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9″) Weight: 2.95 kg (6.5 lb)
GV-Mount206	Wall Box Mount		Dimensions: 126.5 x 211.3 x 176.85 mm / 5 x 8.3 x 6.96″ Weight: 0.93 kg (2.06 lb)
GV-Mount 208-2	Swan Neck Mount		Dimension: 1043 x 519 x 256 mm (41.06 x 20.43 x 10.08″) Weight: 10.5 kg (23.15 lb)
GV-Mount702	Extension Tube		Four options are available. Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm (Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7″) Weight: 180 g or 390 g or 550 g or 800 g (0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount903-1	Dome Housing		Dimensions: Ø 185.5 x 165.3 mm (Ø 7.3″ x 6.5″) Weight: 900 g (1.98 lb)
GV-Mount904-1	Tilting Wall Mount Bracket		Dimensions: Ø 159.1 x 40.5 mm (Ø 6.3 x 1.6″) Weight: 350 g (0.77 lb)
GV-Mount912	Power Box Mount Bracket		Dimensions: Ø 146 x 10.5 mm (Ø 5.7 x 0.4″) Weight: 180 g (0.4 lb)
GV-WiFi Adaptor V2			Dimensions (H x W x D): 15 x 15 x 155 mm (0.59 x 0.59 x 6.10″) Weight: 0.01 kg (0.02 lb)
GV-Relay V2			The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch		The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
