Ottica e portata
Campo visivo
180°
- Diaframma
- Fixed
- Lunghezza focale
- 1.32mm
- Campo visivo orizzontale
- 180°
- Apertura massima
- F/2.0
- Formato sensore
- 1/2.5″
Termini collegati alla documentazione tecnica:
campo visivo,
criterio di Johnson,
NETD.
Caratteristiche
- 1/2.5″ progressive scan CMOS
- Up to 10 fps at 2560 × 1920
- Dual streams from H.264 and MJPEG
- Day and Night function (with removable IR-cut filter)
- Wide Dynamic Range (WDR)
- Vandal resistance (IK10+ for metal casing)
- DC 12V / AC 24V / PoE (IEEE 802.3af)
- Mini USB slot for WiFi Adapter or USB hard drive
- Built-in micro SD card slot (SD/SDHC) for local storage
- Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
- Built-in microphone and speaker
- Digital Object Tracking
- Provides 360° and 180° panorama view
- Different angle of view accessible by multiple users at the same time
- Playback from any view angle and zoom level
- No mechanical moving parts
- Two-way audio
- 2D noise reduction
- Defog
- Tampering alarm
- Virtual PTZ function
- Auto Pan function
- Privacy mask
- Visual automation
- Text overlay
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Registro di responsabilità
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, unica CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona.
Contenuto della confezione

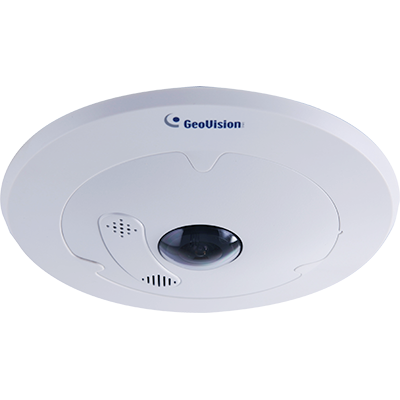

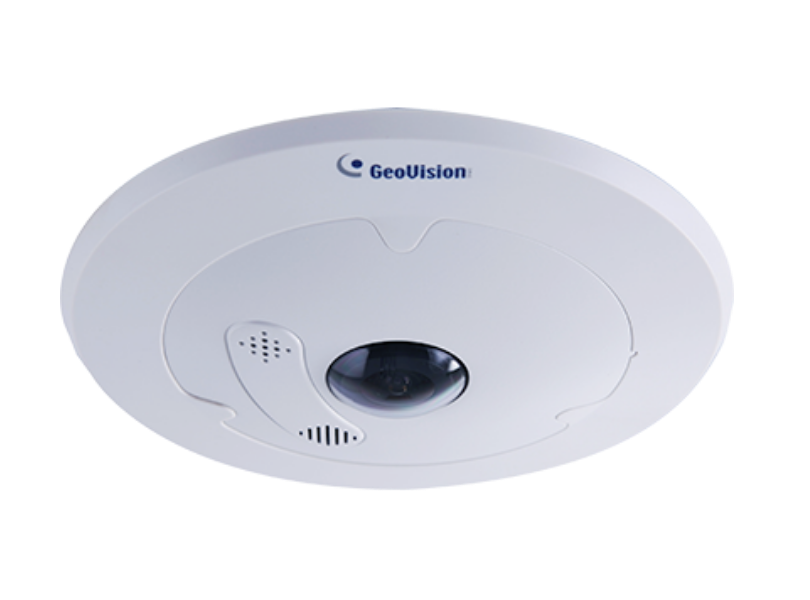

- GV-Fisheye Camera
- Support Bracket x 3
- Camera Cover (Hard Ceiling Mount)
- Camera Cover (In-Ceiling Mount)
- Screw (Hard Ceiling Mount) x 3
- Screw (In-Ceiling Mount) x 3
- Torx wrench
- Plastic Screw Anchor x 3
- Mini USB Extension Cable
- Installation Sticker
- Power Adapter
- GV-Fisheye IP Dome Hardware Installation Guide
- Download Guide
- Warranty Card
Accessori compatibili
GV-Mount100 · Straight Tube and Junction Box Kit · Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1″)
Weight: 3.17 kg (6.99 lb)
GV-Mount101 · Straight Tube Kit · Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1″)
Weight: 1.8 kg (3.97 lb)
GV-Mount200 · Wall Pendant Tube · Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8″)
Weight: 900 g (1.98 lb)
GV-Mount203 · Wall Pendant Tube and Junction Box Kit · Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9″)
Weight: 2.95 kg (6.5 lb)
GV-Mount205 · Wall Mount Bracket Kit · Dimensions: 126.5 x 203 x 160 mm / 5 x 8 x 6.3″ (L x W x diameter)
Weight: 0.5 kg (1.1 lb) · Note: To ensure the image quality,…
GV-Mount 208-2 · Swan Neck Mount · Dimension: 1043 x 519 x 256 mm (41.06 x 20.43 x 10.08″)
Weight: 10.5 kg (23.15 lb)
GV-Mount300-1 · Convex Corner Adapter Kit · Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″)
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 · Concave Corner Adapter Kit · Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2″)
Weight: 2.96 kg (6.53 lb)
