Ottica e portata
Campo visivo
92°~32°
Illuminazione notturna
Infrarosso 30 m
- Diaframma
- P-Iris
- Lunghezza focale
- 3 ~ 9mm
- Campo visivo orizzontale
- 92°~32°
- Apertura massima
- F/1.7
- Formato sensore
- 1/3.2″
Termini collegati alla documentazione tecnica:
campo visivo,
criterio di Johnson,
NETD.
Caratteristiche
- 1/3.2″ progressive scan low lux CMOS
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 2592 × 1944
- Vandal resistance (IK10)
- Ingress protection (IP67)
- Intelligent IR
- Day and Night function (with removable IR-cut filter)
- Megapixel varifocal lens
- P-iris lens for auto iris control
- IR distance up to 30 m (98.4 ft)
- 3-axis mechanism (pan / tilt / rotate)
- DC 12V / PoE (IEEE 802.3af)
- Two-way audio
- Wide Dynamic Range (WDR)
- 3D noise reduction
- Defog
- Motion detection
- Tampering alarm
- Text overlay
- Privacy mask
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Registro di responsabilità
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, unica CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona.
Contenuto della confezione

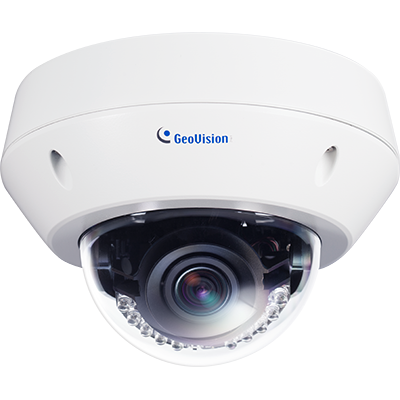

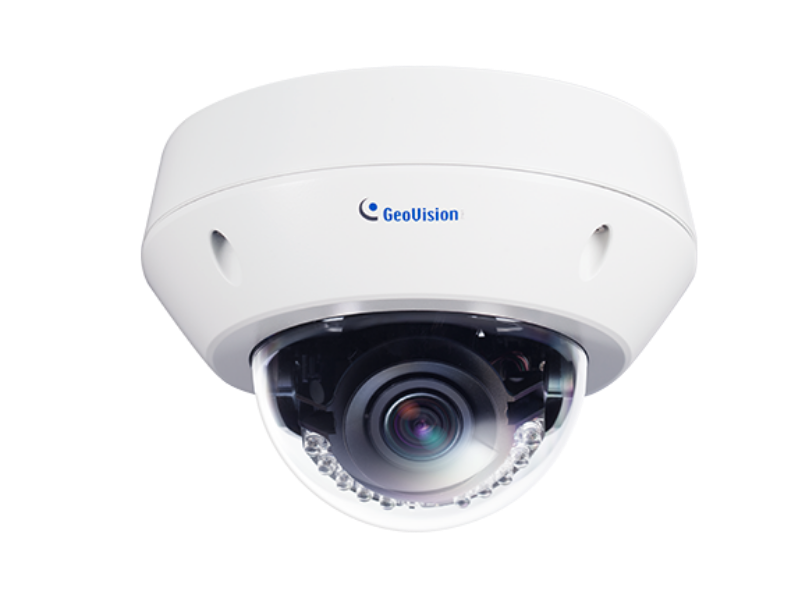

- Target Vandal Proof Dome
- Screw x 4
- Screw Anchor x 4
- TV‐Out Wire
- Audio Wires x 2
- Installation Sticker
- Conduit Converter
- RJ‐45 Connector
- Waterproof rubber sets (for RJ-45 Cat.5 and 12V DC / for RJ-45 Cat.6)
- Torx Wrench
- Big Concave hexagon Wrench
- Small Concave hexagon Wrench
- Silica Gel Bag
- Sticker (for Silica Gel Bag)
- Ruler
- Download Guide
- Warranty Card
Accessori compatibili
GV-Mount100 · Straight Tube and Junction Box Kit · Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1″)
Weight: 3.17 kg (6.99 lb)
GV-Mount101 · Straight Tube Kit · Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1″)
Weight: 1.8 kg (3.97 lb)
GV-Mount200 · Wall Pendant Tube · Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8″)
Weight: 900 g (1.98 lb)
GV-Mount203 · Wall Pendant Tube and Junction Box Kit · Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9″)
Weight: 2.95 kg (6.5 lb)
GV-Mount206 · Wall Mount Bracket Kit · Dimensions: 126.5 x 211.3 x 176.85 mm / 5 x 8.3 x 6.96″
Weight: 0.93 kg (2.06 lb)
GV-Mount 208-2 · Swan Neck Mount · Dimension: 1043 x 519 x 256 mm (41.06 x 20.43 x 10.08″)
Weight: 10.5 kg (23.15 lb)
GV-Mount300-1 · Convex Corner Adapter Kit · Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″)
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 · Concave Corner Adapter Kit · Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2″)
Weight: 2.96 kg (6.53 lb)
