Caratteristiche
- 2MP progressive scan super low lux CMOS
- Minimum illumination at 0.02 lux
- Dual streams from H.264 and MJPEG
- Up to 15 fps at 1920 x 1080
- Day and night function (with removable IR-cut filter)
- Built-in IR with effective distance up to 3 m (9.84 ft)
- Ingress protection (IP66)
- DC 12V, 2.5A / PoE+ (IEEE 802.3at)
- Built-in microphone and speaker
- Wide Dynamic Range (WDR)
- Built-in micro SD card slot
- Provides 180° panorama view
- Built-in 13.56 MHz Reader (Mifare DESFire, MIFARE Plus and MIFARE Classic)
- Support for GV-Proximity Cards with GID (Geovision Identifier) to enhance security
- Access by card plus face detection
- Network interface for connecting to and access control by controllers
- Support for GV-WTR for connecting to and access control by 3rd-party Wiegand controllers
- Enabling different access control modes according to the Authentication Schedule: Card only mode (default), Card and Face Mode
- Touchpad for talk mode
- Receiving live view and capturing snapshots when card is presented
- 2 inputs, dry contact
- 1 relay outputs (30V DC, 0.5A)
Registro di responsabilità
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, unica CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona.
Contenuto della confezione

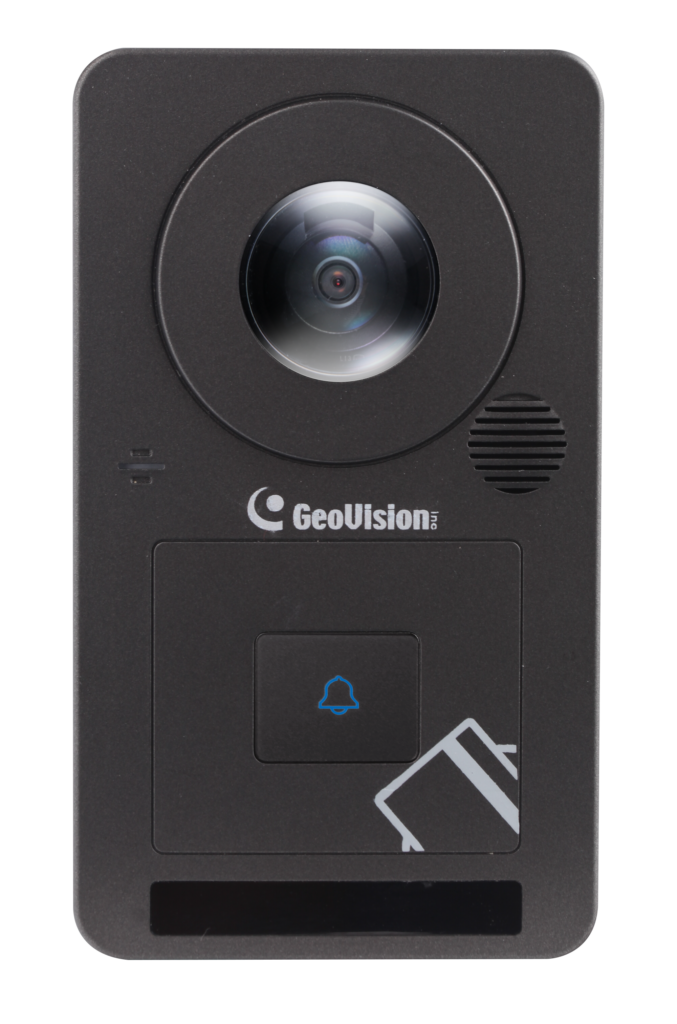

- GV-CR1320
- Mounting Plate
- Standard Screw x 2
- Plastic Screw Anchor x 2
- Security Screw
- Torx Wrench
- Silica Gel Bag
- Micro SD Card 2 GB (inserted and formatted)
- Download Guide
- Warranty Card
Documentazione
Accessori compatibili
GV-WTR
GV-WTR is a converter that bridges Wiegand and RS-485 devices in both…
Push Button Switch
The push button switch can be integrated with access control system, allowing…
GV-IB25 / 65 / 85 Infrared Button
The GV-IB25 / 65 / 85 Infrared Button detects infrared movement within…
Electric Lock
Three types of electric locks are available: electromagnetic lock, electric bolt and…
Access Card / Fob / Sticker / Tag
GeoVision offers a wide range of access cards, fobs, stickers, and tags…
Power Adapter
Contact our sales representatives for the countries and areas supported.
