Ottica e portata
Campo visivo
86°~31°
Illuminazione notturna
Infrarosso 50 m
- Diaframma
- P-Iris
- Lunghezza focale
- 3~9mm
- Campo visivo orizzontale
- 86°~31°
- Apertura massima
- F/1.2
- Formato sensore
- 1/2.7″
Termini collegati alla documentazione tecnica:
campo visivo,
criterio di Johnson,
NETD.
Caratteristiche
- 3MP progressive scan CMOS
- Dual streams from H.264 and MJPEG
- Up to 20 fps at 2048 × 1536
- Intelligent IR
- IR distance up to 50 m (164 ft)
- P-iris lens for auto iris control
- Motorized varifocal lens for remote focus / zoom adjustment
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- Tolerant to extreme temperatures (-20°C ~ 50°C/-4°F ~ 122°F)
- One alarm input and sensor output
- Built-in micro SD card slot (SD/SDHC) for local storage
- Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
- Two-way audio
- Wide Dynamic Range Pro (WDR Pro)
- 2D noise reduction
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- DC 12V / AC 24V / PoE (IEEE 802.3af)
- Day and Night function (with removable IR-cut filter)
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Registro di responsabilità
- Verificato da
- GVision Italia
- Vulnerabilità aperte
- nessuna
- Immesso sul mercato UE da
- GVision Italia S.r.l.
Le vulnerabilità di questo prodotto sono assegnate e pubblicate da GVision Italia, unica CNA
italiana sotto ENISA Root, nei termini previsti dall’articolo 14 del Cyber Resilience Act.
Come funziona.
Contenuto della confezione

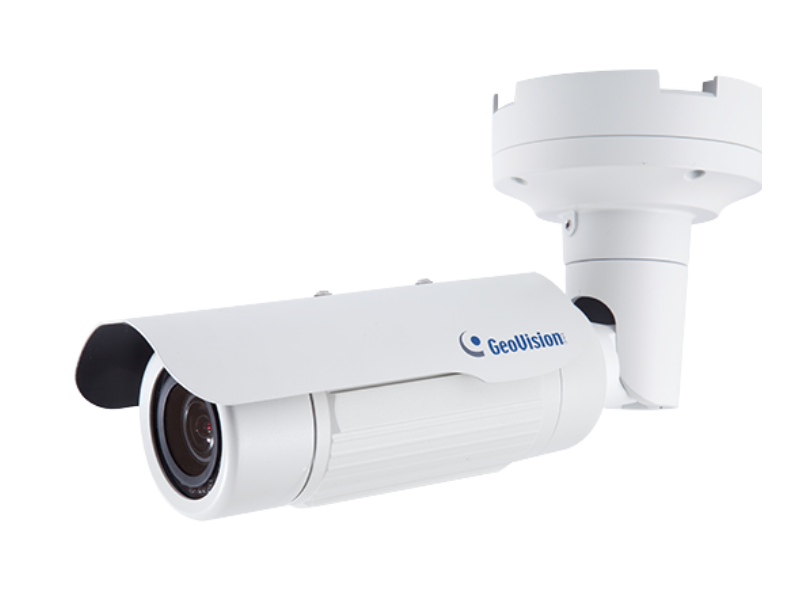

- Bullet Camera
- Self Tapping Screw x 3
- Plastic Screw Anchor x 3
- Torx Wrench x 3
- Sun-Shield Cover Kit (1 Sun-Shield Cover, 2 Philips Head Screws, 2 Plastic Screw Spacers and 2 Hexagon Screws included)
- Silica Gel Bag x 2
- 2-Pin Terminal Block
- 3-Pin Terminal Block
- Power Adapter
- Installation Sticker
- Ruler
- Stand Kit (Conduit Converter, PG21 Conduit Connector, RJ-45 Connector, M3 Screw x 2, Cable Tie)
- Mounting Kit (M4 Screw x 3, Nut x 3, Plate x 3)
- Download Guide
- Warranty Card
Accessori compatibili
GV-Mount300-1 · Convex Corner Adapter Kit · Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″)
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 · Concave Corner Adapter Kit · Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2″)
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 · Pole Mount Bracket Kit (Ø 4 ~ 6″) · Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb) · Steel Strap Diameter: Ø 4 ~…
GV-Mount410-1 · Pole Mount Bracket Kit (Ø 6 ~ 7.5″) · Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb) · Steel Strap Diameter: Ø 6 ~…
GV-PA191 PoE Adapter
Power over Ethernet (PoE) Adapter · The GV-PA191 is a Power over…
GV-Relay V2
The GV-Relay V2 is designed to expand the voltage load of GV…
GV-POE Switch · The GV-POE Switch is designed to provide power along with network connection for IP devices.
The GV-POE Switch is available in various models with different numbers and…
Power Adapter
Contact our sales representatives for the countries and areas supported.
