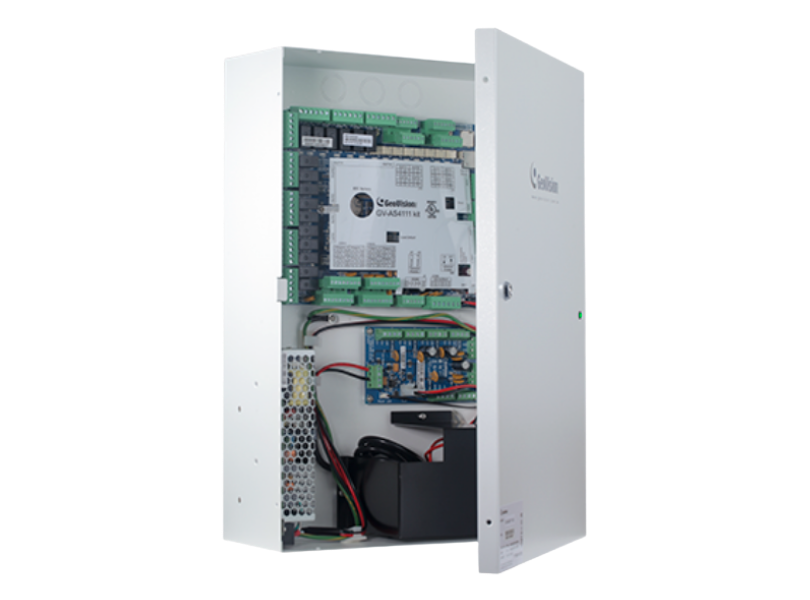

GV-AS8111 Kit è un rack contenente un GV-AS8111, una scheda di alimentazione, un alimentatore e un involucro per batteria di backup. L’alimentatore fornisce alimentazione al kit GV-AS8111 e fino a 8 dispositivi di uscita (12V, 0,5 A per dispositivo).
GV-AS8111 Kit
Specifiche
Note:
- Il livello di attacco UL 294, classe 1 dipende dagli altri dispositivi collegati.
- Le specifiche sono soggette a modifiche senza preavviso.
- One-way control: 8 doors
- Two-way control: 4 doors by Wiegand only; 8 doors by RS-485 / network; 8 doors with max 4 doors by Wiegand and other doors by RS-485 / network
- 8 Wiegand card readers of 26 to 64 bits
- 16 GV-Readers and GV-GF Fingerprint Readers through RS-485 and network
- Built-in 16 inputs and 24 relay outputs
- Suitable for controlling doors, parking gates and access to elevator call buttons
- Support for tampering alarm
| Model No | Name | Details | |
|---|---|---|---|
| Push Button Switch | The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device. Both American standard and European standard push buttons are available. | ||
| GV-IB25 / 65 / 85 Infrared Button | The GV-IB25 / 65 / 85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of hand. | ||
| Electric Lock | Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike. | ||
| GV-AS ID Card & GV-AS ID Key Fob | For Card Mode, the GV-AS ID Card / Tag is required. 13.56 MHz cards and tags are available. | ||
- GV-AS8111 Kit (US standard or EU standard)
- Iron box key
- Iron box screw x 6
- Self-adhesive cable tie mounts x 6
- Power cord for battery
- Micro SD Card 2 GB
- Software CD
- Warranty Car
