GV-AS2120 IP Control Panel è una scheda controller per sistemi Controlli Accessi. Dotata di processore dialoga con il software ASManager. Studiata per il controllo all’accesso ad aree industriali, ospedali, accesso ai parcheggi e per il controllo dei pulsanti negli ascensori

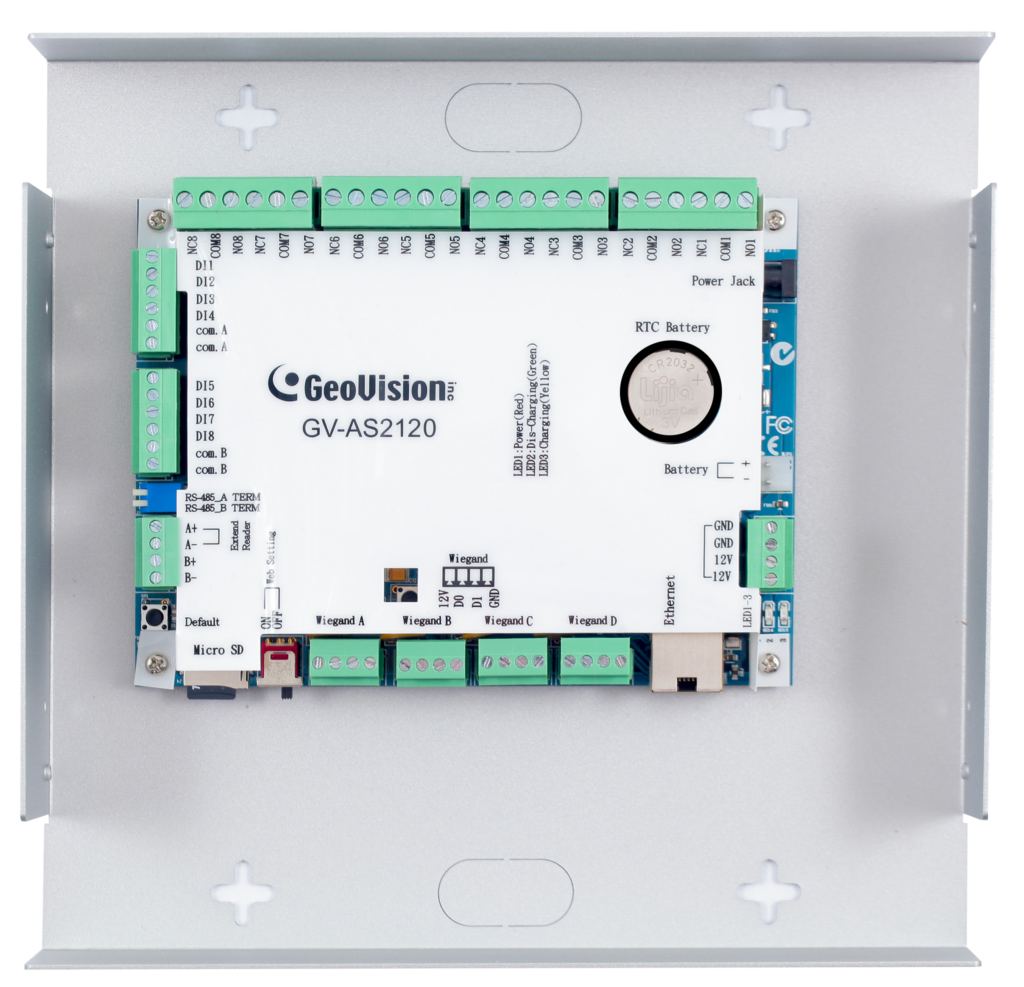

GV-AS2120 IP Control Panel
Specifiche
Note:
- Le interfacce RS485 e TCP / IP supportano solo i lettori GeoVision, mentre l’interfaccia Wiegand supporta sia i lettori GeoVision che quelli di terze parti (Wiegand 26 ~ 64 bit).
- Il controller GV-AS non supporta il software di controllo degli accessi di terze parti
- Le specifiche sono soggette a modifiche senza preavviso.
- One-way control: 4 doors
- Two-way control: 2 doors by Wiegand only, 4 doors by Wiegand, RS-485 and network
- 4 Wiegand card readers of 26 to 64 bits
- 8 GV-Readers and GV-GF Fingerprint Readers through RS-485 and network
- Built-in 8 digital inputs and 8 relay outputs
- Suitable for controlling doors, parking gates and access to elevator call buttons
- Support for tampering alarm
- DC 12V, 3A / PoE+ (IEEE 802.3at, provides up to 25.5 W)
| Model No | Name | Details | |
|---|---|---|---|
| Push Button Switch | The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device. Both American standard and European standard push buttons are available. | ||
| GV-IB25 / 65 / 85 Infrared Button | The GV-IB25 / 65 / 85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of hand. | ||
| Electric Lock | Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike. | ||
| GV-AS ID Card & GV-AS ID Key Fob | For Card Mode, the GV-AS ID Card / Tag is required. 13.56 MHz cards and tags are available. | ||
| GV-POE Switch | The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports. | ||
| Power Adapter | Contact our sales representatives for the countries and areas supported. | ||
- GV-AS2120
- Battery Cable
- Screw x 4
- Micro SD Card 2 GB
- Software CD / DVD
- Warranty Card
