GV-Storage System V2 – 4U,24-Bay

Login per vedere il prezzo

GV-Storage System V2, the IP SAN storage system, is a high-performance RAID storage system based on the latest iSCSI technology for users looking for a cost-effective and shared storage solution over the network.

Descrizione prodotto

GV-Storage_system_V2
  • 4U 24-bay hot-swap SATA II / III HDD for data storage
  • Storage capacity up to 144 TB (with 6 TB HDD)
  • Six 1 GbE iSCSI data ports
  • RAID levels 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, JBOD, and N-way mirror
  • Fully redundant & hot pluggable designs: power supplies and fans
  • Hardware iSCSI offload engine
  • Background logical drive rebuilding
  • Automatic rebuilding onto hot spare (Local & Global Hot Spare)
  • Web management interface enabled on a specific Ethernet interface
  • Multi-path and load-balancing Features
  • Storage expendable up to 1152 TB with 192 hard drives by connecting up to 7 GV-Expansion Systems (4U, 24-bay)
Large Storage Capacity
GV-Storage System V2, the IP SAN storage system, is a high-performance RAID storage system based on the latest iSCSI technology for users looking for a cost-effective and shared storage solution over the network. Compared to the desktop PC and consumer NAS system which only allow for 2 ~ 8 hard disks for data storage, GV-Storage System V2 is equipped with 24 hard disk drives, storage capacity up to 144 TB (with 6 TB HDD). GV-Storage System V2 can connect to 7 units of 24-bay GV-Expansion Systems, JBOD systems, increasing storage up to 192 hard disks with 1,152 TB.
High Availability
GV-Storage System V2 has fully redundant components including power supplies, fan modules, and SAS JBOD expansion ports linked to GV-Expansion System. All of these components are hot-swappable to create a high availability platform and provide non-stop services.
Compatibility with GeoVision Surveillance Systems
GV-Storage System V2 is compatible with GeoVision Surveillance Systems and Software. With its large storage capacity and high availability, GV-Storage System V2 is an ideal choice for safe and long-term data storage.
Compatible GeoVision Products
  • GV-Hot Swap System V5 Series
  • GV-NVR System Lite V2 Series
  • GV-Tower / DVR / NVR / VMS System
  • GV-DVR / NVR / VMS / Recording Server / Backup Center / Redundant Server / Failover Server
System
CPU Intel processor
RAM 4 GB DDR3 ECC
Management Port RJ-45, 10 / 100 / 1000 Mbps
iSCSI Port 1 GbE iSCSI ports x 6
UPS Port UPS port x 1 (phone jack to DB9 male)
SAS Port 6 Gbps SAS port x 1
No. of Hot Swap Drive Bays 24
HDD Type SATA II / III
Power Output: 550 W x 2
Input: 100 ~ 230V, 50 ~ 60 Hz
Fan Hot pluggable and redundant fan x 3
Physical
LED Indicator Yes (Power, HDD, Status, Access)
Color Black
Form Factor 4U 19 inch rackmount chassis
Dimensions (W x H x D) 481 x 176 x 550 mm / 19 x 7 x 22 in
Weight 34 kg / 75 lb (Diskless)
Regulatory CE / FCC / BSMI / C-Tick / LVD
Environment
Operating Temperature 0 ~ 40°C / 32 ~ 104 °F
Humidity 5 ~ 95% RH (non-condensing)
Management
Management Method Web UI
RAID Mode RAID 0 / 1 / 3 / 5 / 6 / 0+1 / 10 / 30 / 50 / 60 and JBOD, and N-way mirror
Automatic RAID Creation Yes
RAID Migration Yes
RAID Expansion Yes
Alert Email, SNMP, Windows Messenger, System Buzzer
Security CHAP authentication
HDD Health Detection S.M.A.R.T. diagnostics
Language English / French / German / Japanese / Russian / Simplified Chinese
Note: All specifications are subject to change without notice.



Maximum Recorded Channels:
The maximum number of channels supported by GV-Storage System V2 varies with the resolution, as listed below. It’s highly suggested to keep the total bitrates under 2700 Mbps for better recording performance.
Video Streaming Complex Scenes Normal Scenes
Resolution Frame rate Bitrate Record Channels Bitrate Record Channels
1.3 MP 30 fps 5 Mbps 534 ch 1.73 Mbps 1560 ch
2 MP 30 fps 7 Mbps 385 ch 3.86 Mbps 699 ch
3 MP 20 fps 10.48 Mbps 257 ch 3.38 Mbps 798 ch
4 MP 15 fps 11.65 Mbps 231 ch 8.93 Mbps 302 ch
5 MP 10 fps 16.48 Mbps 163 ch 3.16 Mbps 854 ch
Front View

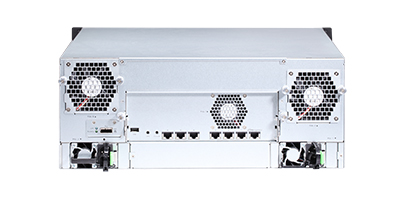

Rear View
Creating a RAID Volume for a Host
HDD Replacement
Power Supply & Fan Replacement
  • GV-Storage System V2
  • HDD Tray x 24
  • Power Cord x 2
  • RS-232 Cable (For UPS, phone jack to DB9 male).
  • Rail Kit
  • Keys, Screws for Drives and Rail Kit (packet)
  • Quick Start Guide
  • Software Disk
