GV-Expansion System V2 – 4U,24-Bay

Login per vedere il prezzo

GV-Expansion System, the JBOD system equipped with 24 hard disk drives, is used with GV-Storage System V2

Descrizione prodotto

GV-Expansion_system_V2
  • 4U 24-bay hot-swap SATA II / III HDD for data storage
  • Storage capacity up to 144 TB (with 6 TB HDD)
  • Up to 7 sets of GV-Expansion System connection for expansion from GV-Storage System V2
  • Fully redundant & hot pluggable designs: power supplies and fans

GV-Expansion System, the JBOD system equipped with 24 hard disk drives, is used with GV-Storage System V2. Up to 7 units of 24-bay GV-Expansion Systems can be connected through SAS JBOD expansion ports to increase storage up to 192 hard disk with 1,152 TB.

System
SAS Port6 Gbps SAS port x 2
No. of Hot Swap Drive Bays24
HDD TypeSATA II / III
PowerOutput: 550 W x 2
Input: 100 ~ 230V, 50 ~ 60 Hz
FanHot pluggable and redundant fan x 3
Physical
LED IndicatorYes (Power, HDD, Status, Access)
ColorBlack
Form Factor4U 19 inch rackmount chassis
Dimensions (W x H x D)481 x 176 x 550 mm / 19 x 7 x 22 in
Weight34 kg / 75 lb (Diskless)
RegulatoryCE / FCC / BSMI / C-Tick / LVD
Environment
Operating Temperature0 ~ 40°C / 32 ~ 104 °F
Humidity5 ~ 95% RH (non-condensing)
Note: All specifications are subject to change without notice.

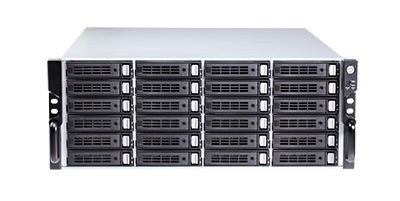

Front View

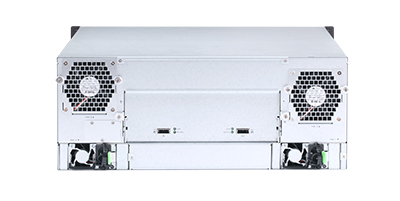

Rear View
  • GV-Expansion System
  • HDD Tray x 24
  • Power Cord x 2
  • Mini-SAS Cable
  • Rail Kit
  • Keys, Screws for Drives and Rail Kit (packet)
  • Quick Start Guide
  • Software Disk
